TPS16630PWPR - Texas Instruments

Manufacturer Part Number

TPS16630PWPR

Manufacturer

Texas Instruments

Introduction

TPS16630PWPR is a current regulation and management integrated circuit designed for power management applications.

Product Features and Performance

Precision electronic fuse

Wide input voltage range from 4.5V to 60V

Output current capacity of 6A

Thermal shutdown feature

Under-voltage lockout (UVLO)

Programmable current limit

Fast response time for fault protection

Product Advantages

High accuracy of ±2%

Integrated functions for enhanced system reliability

Supports high power applications up to 60V

Thermal and overcurrent protection for safety

Key Technical Parameters

Voltage - Input: 4.5V ~ 60V

Current - Output: 6A

Operating Temperature: -40°C ~ 125°C (TJ)

Accuracy: ±2%

Mounting Type: Surface Mount

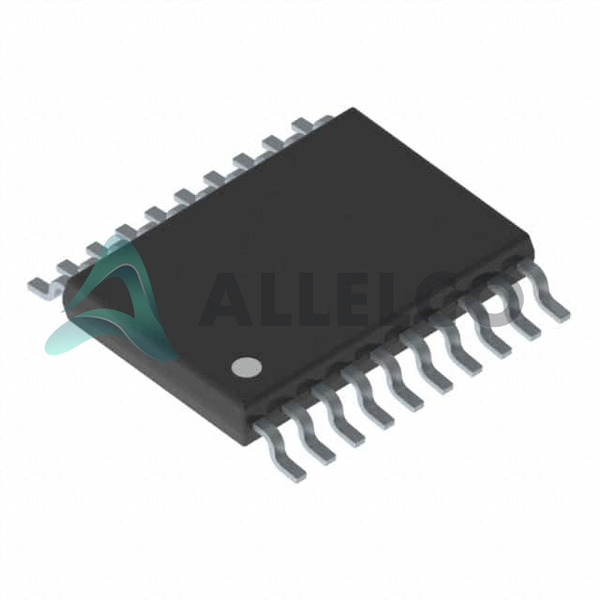

Package / Case: 20-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package: 20-HTSSOP

Quality and Safety Features

Multiple protection features for overcurrent, overheating, and under-voltage

Built to withstand harsh environmental conditions

Extended operating temperature range

Compatibility

Compatible with a wide range of power supply designs

Supported in common surface mount processes

Application Areas

Power supply systems

Battery chargers

Industrial automation

Communication systems

Consumer electronics

Product Lifecycle

Active product status

Several Key Reasons to Choose This Product

High reliability with integrated protective features

Broad input voltage helps versatility in applications

Texas Instruments' reputation for quality and support

Suitable for surface mount technology, allows for compact designs

Long lifecycle with active product status, reducing redesign risks
