Manufacturer Part Number

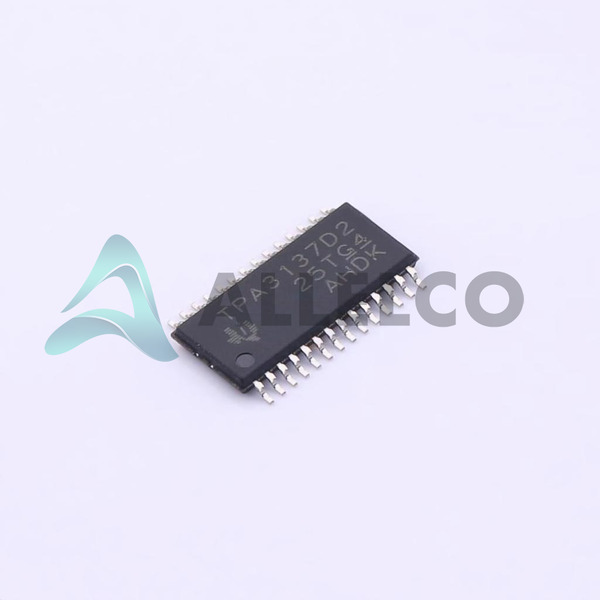

TPA3137D2PWPR
Manufacturer
Texas Instruments
Introduction
2-channel (stereo) Class D audio power amplifier
Product Features and Performance
Supports 4.5V to 14.4V supply voltage range
Delivers up to 6W per channel into an 8-ohm load
Integrated short-circuit, over-temperature, and pop/click protection
Proprietary Depop technology for reduced output transients
Thermal shutdown protection
High efficiency up to 90%
Product Advantages
High power output in a small package
Robust protection features for reliable operation
Broad supply voltage range for versatile applications
High efficiency for power-sensitive designs
Key Technical Parameters
Output Power: 6W x 2 @ 8Ohm
Supply Voltage: 4.5V to 14.4V
Operating Temperature: -40°C to 85°C
Package: 28-HTSSOP
Quality and Safety Features
RoHS3 compliant
Integrated short-circuit, over-temperature, and pop/click protection
Compatibility
Surface mount package for easy PCB integration
Application Areas
Portable audio devices
Home audio systems
Automotive infotainment systems
Product Lifecycle
Active product, not nearing discontinuation
Replacement and upgrade options available from Texas Instruments
Key Reasons to Choose This Product
High power output in a compact package
Robust protection features for reliable operation
Broad supply voltage range for versatile applications
High efficiency for power-sensitive designs
Easy integration with surface mount package
