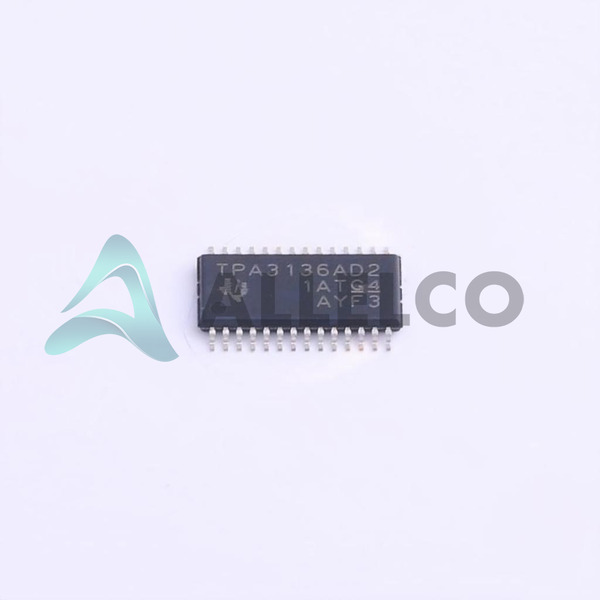

TPA3136AD2PWPR - Texas Instruments

Manufacturer Part Number

TPA3136AD2PWPR

Manufacturer

Texas Instruments

Introduction

High-performance, high-efficiency audio power amplifier

Designed for stereo audio applications

Product Features and Performance

Class D amplifier architecture

10W x 2 channels at 8Ω load

Wide supply voltage range: 8V to 14.4V

Low quiescent current of 1mA

Fast turn-on and turn-off time

Integrated de-pop and short-circuit protection

Thermal protection

High efficiency up to 90%

Product Advantages

Reduced power consumption

Compact size and low component count

Simplified design and reduced system cost

Key Technical Parameters

Output Power: 10W x 2 channels at 8Ω load

Supply Voltage: 8V to 14.4V

Quiescent Current: 1mA

Efficiency: Up to 90%

Operating Temperature: -40°C to 85°C

Quality and Safety Features

ROHS3 compliant

Integrated protection features (de-pop, short-circuit, thermal)

Compatibility

Suitable for a wide range of stereo audio applications

Application Areas

Portable audio devices

Home audio systems

Automotive infotainment systems

Product Lifecycle

Currently in production

Replacement and upgrade options available

Key Reasons to Choose This Product

High-efficiency Class D amplifier design

Compact size and low component count for simplified system design

Wide supply voltage range and high output power for versatile applications

Integrated protection features for reliable operation

Proven performance and quality from a trusted manufacturer (Texas Instruments)
