HomeProductsIntegrated Circuits (ICs)Linear - Amplifiers - AudioTPA3136D2PWPR

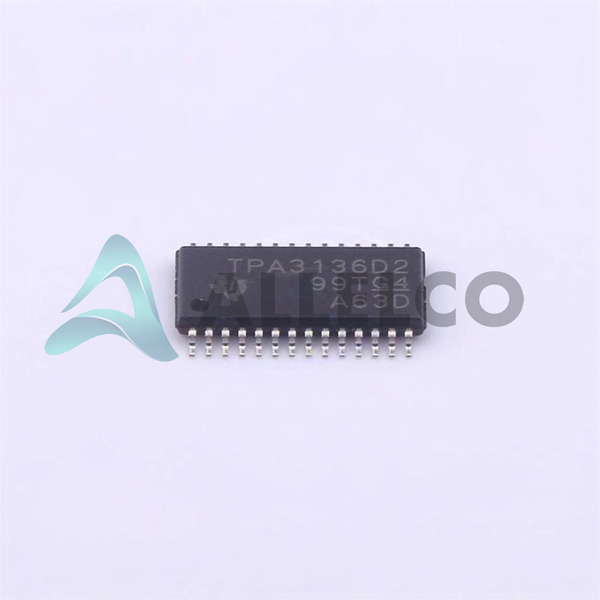

TPA3136D2PWPR Image
TPA3136D2PWPR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPA3136D2PWPR - Texas Instruments

Manufacturer Part Number
TPA3136D2PWPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPA3136D2PWPR
ECAD Model
Parts Description
IC AMP CLASS D STER 10W 28HTSSOP
Package
28-PowerTSSOP (0.173", 4.40mm Width)
Data sheet
TPA3136D2 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 34920

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPA3136D2PWPR Tech Specifications
Texas Instruments - TPA3136D2PWPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPA3136D2PWPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 4.5V ~ 14.4V
Type Class D
Supplier Device Package 28-HTSSOP
Series -
Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Output Type 2-Channel (Stereo)
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Max Output Power x Channels @ Load 10W x 2 @ 8Ohm
Features Depop, Short-Circuit and Thermal Protection
Base Product Number TPA3136

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS

Parts Introduction

Manufacturer Part Number

TPA3136D2PWPR

Manufacturer

Texas Instruments

Introduction

High-efficiency, high-performance, stereo 10W Class-D audio power amplifier

Product Features and Performance

2-channel (stereo) Class-D amplifier

Supports up to 10W output power per channel into 8Ω load

Wide supply voltage range of 4.5V to 14.4V

Thermal, short-circuit, and pop protection

Low quiescent current of 2mA

Low EMI and high efficiency

Product Advantages

High efficiency and low power consumption

Compact size and easy integration

Advanced protection features for reliable operation

Wide operating voltage range for flexible system design

Key Technical Parameters

Output Power: 10W x 2 @ 8Ω

Supply Voltage: 4.5V to 14.4V

Quiescent Current: 2mA

Operating Temperature: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Short-circuit, thermal, and pop protection

Compatibility

Suitable for a variety of portable and stationary audio applications

Application Areas

Portable audio devices

Home audio systems

Automotive infotainment systems

Professional audio equipment

Product Lifecycle

Currently in production

Replacement or upgrade options available from Texas Instruments

Key Reasons to Choose This Product

High-efficiency Class-D amplifier design for power-sensitive applications

Wide operating voltage range for flexible system integration

Advanced protection features for reliable and safe operation

Compact package size and easy surface mount integration

Proven performance and reliability from a trusted manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPA3136D2PWPR

Product Attribute TPA3136D2PWPR TPA3140D2PWPR TPA3132D2RHBR TPA3137D2PWPR
Part Number TPA3136D2PWPR TPA3140D2PWPR TPA3132D2RHBR TPA3137D2PWPR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Base Product Number TPA3136 TPA3140 TPA3132 TPA3137
Output Type 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo)
Type Class D Class D Class D Class D
Features Depop, Short-Circuit and Thermal Protection Depop, Short-Circuit and Thermal Protection Mute, Short-Circuit and Thermal Protection, Shutdown Depop, Short-Circuit and Thermal Protection
Max Output Power x Channels @ Load 10W x 2 @ 8Ohm 10W x 2 @ 8Ohm 42W x 2 @ 4Ohm, 25W x 2 @ 8Ohm 6W x 2 @ 8Ohm
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Supply 4.5V ~ 14.4V 4.5V ~ 14.4V 4.5V ~ 26V 4.5V ~ 14.4V
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Series - - - -
Package / Case 28-PowerTSSOP (0.173", 4.40mm Width) 28-PowerTSSOP (0.173", 4.40mm Width) 32-VFQFN Exposed Pad 28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package 28-HTSSOP 28-HTSSOP 32-VQFN (5x5) 28-HTSSOP
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)

TPA3136D2PWPR Datasheet PDF

Download TPA3136D2PWPR pdf datasheets and Texas Instruments documentation for TPA3136D2PWPR - Texas Instruments.
