HomeProductsSensors, TransducersTemperature Sensors - Analog and Digital OutputTMP112BIDRLT

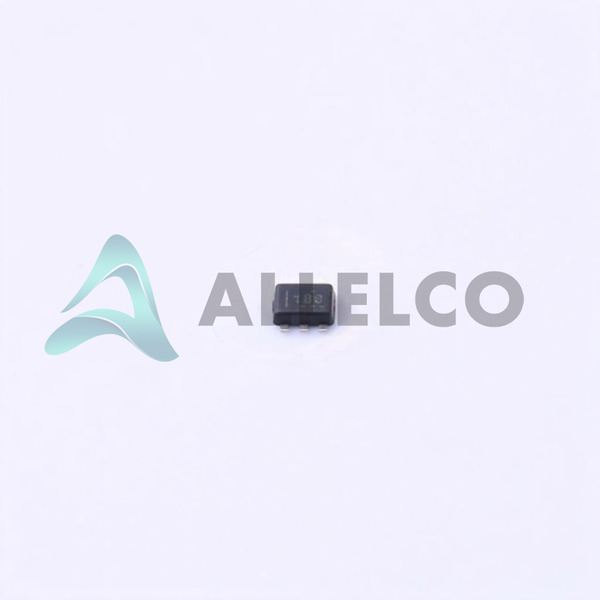

TMP112BIDRLT Image
Image may be representation.
See specifications for product details.

TMP112BIDRLT - Texas Instruments

Manufacturer Part Number
TMP112BIDRLT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TMP112BIDRLT
ECAD Model
Parts Description
SENSOR DIGITAL -40C-125C SOT563
Detailed Description
Package
SOT-563, SOT-666
Data sheet
TMP112 Datasheet.pdf
RoHs Status
ROHS3 Compliant
In stock: 20074

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TMP112BIDRLT Tech Specifications
Texas Instruments - TMP112BIDRLT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMP112BIDRLT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 1.4V ~ 3.6V
Test Condition 0°C ~ 65°C (-40°C ~ 125°C)
Supplier Device Package SOT-5X3
Series -
Sensor Type Digital, Local
Sensing Temperature - Remote -
Sensing Temperature - Local -40°C ~ 125°C
Resolution 12 b
Product Attribute Attribute Value
Package / Case SOT-563, SOT-666
Package Tape & Reel (TR)
Output Type 2-Wire Serial, I²C/SMBUS
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Features -
Base Product Number TMP112
Accuracy - Highest (Lowest) ±0.5°C (±1°C)

Parts Introduction

Manufacturer Part Number

TMP112BIDRLT

Manufacturer

Texas Instruments

Introduction

The TMP112BIDRLT is a high-precision digital temperature sensor with an integrated 12-bit analog-to-digital converter (ADC). It provides an accurate and reliable temperature measurement in a small package.

Product Features and Performance

12-bit temperature resolution

Accuracy of ±0.5°C (0°C to 65°C), ±1°C (-40°C to 125°C)

Wide operating temperature range of -40°C to 125°C

Low power consumption

2-wire serial interface (I2C/SMBus compatible)

Compact SOT-5x3 package

Product Advantages

High accuracy and precision temperature measurement

Wide temperature range

Low power operation

Small and compact package

Key Technical Parameters

Supply voltage: 1.4V to 3.6V

Resolution: 12-bit

Accuracy: ±0.5°C (0°C to 65°C), ±1°C (-40°C to 125°C)

Operating temperature range: -40°C to 125°C

Package: SOT-5x3

Quality and Safety Features

RoHS3 compliant

Tape and reel packaging

Compatibility

Compatible with I2C/SMBus communication protocols

Application Areas

Industrial equipment

Consumer electronics

Medical devices

Automotive systems

Product Lifecycle

The TMP112BIDRLT is an active product and is not nearing discontinuation.

Replacement or upgrade options may be available from Texas Instruments.

Several Key Reasons to Choose This Product

High accuracy and precision temperature measurement

Wide operating temperature range

Low power consumption

Small and compact package

Compatibility with common communication protocols

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TMP112BIDRLT

Product Attribute TMP112BIDRLT TMP112AIDRLR TMP108AIYFFT TMP114NAIYMTR
Part Number TMP112BIDRLT TMP112AIDRLR TMP108AIYFFT TMP114NAIYMTR
Manufacturer Texas Instruments UMW Texas Instruments Texas Instruments
Output Type 2-Wire Serial, I²C/SMBUS I²C/SMBus SMBus 2-Wire Serial, I²C/SMBUS
Package / Case SOT-563, SOT-666 SOT-563, SOT-666 6-UFBGA, DSBGA 4-XFBGA, DSBGA
Features - Shutdown Mode One-Shot, Output Switch, Programmable Limit, Shutdown Mode, Standby Mode One-Shot, Shutdown Mode, Standby Mode
Accuracy - Highest (Lowest) ±0.5°C (±1°C) ±0.1°C (±0.5°C) ±0.75°C (±1°C) ±1°C
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Sensing Temperature - Local -40°C ~ 125°C -55°C ~ 150°C -40°C ~ 125°C -40°C ~ 125°C
Sensing Temperature - Remote - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Series - TMP112A - -
Test Condition 0°C ~ 65°C (-40°C ~ 125°C) 25°C (-40°C ~ 125°C) -20°C ~ 85°C (-40°C ~ 125°C) 0°C ~ 85°C (-40°C ~ 125°C)
Sensor Type Digital, Local Digital, Local Digital, Local Digital, Local
Supplier Device Package SOT-5X3 SOT-563 6-DSBGA 4-PICOSTAR (0.76x0.76)
Resolution 12 b 12 b 11 b 16 b
Voltage - Supply 1.4V ~ 3.6V 1.4V ~ 5.5V 1.4V ~ 3.6V 1.08V ~ 1.98V
Base Product Number TMP112 - TMP108 -
Operating Temperature -40°C ~ 125°C -55°C ~ 150°C -55°C ~ 150°C -40°C ~ 125°C (TA)
