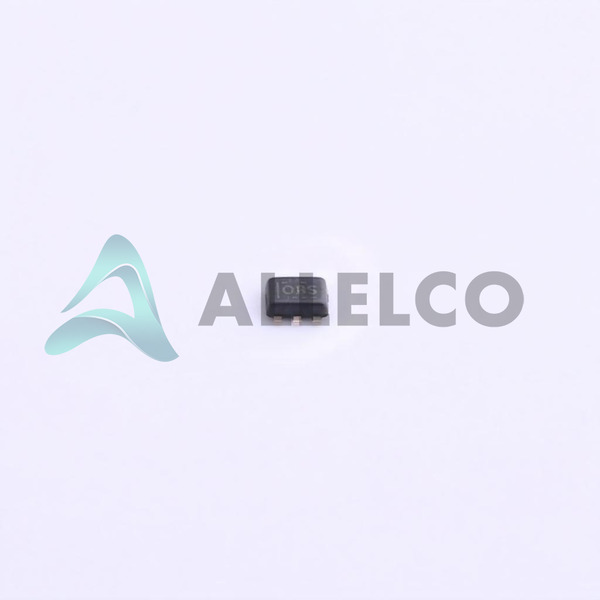

TMP112AIDRLR - Texas Instruments

Manufacturer Part Number

TMP112AIDRLR

Manufacturer

Texas Instruments

Introduction

The TMP112AIDRLR is a high-accuracy, low-power digital temperature sensor with an I2C-compatible interface.

Product Features and Performance

High accuracy: ±0.5°C (max) from -20°C to 65°C, ±1°C (max) from -40°C to 125°C

Low power consumption: 6 µA in normal mode, 0.1 µA in shutdown mode

12-bit temperature resolution

Operating temperature range: -40°C to 125°C

One-shot mode, output switch, and shutdown mode for power optimization

Product Advantages

Excellent temperature accuracy and resolution

Ultra-low power consumption

Small package size (SOT-563, SOT-666)

I2C-compatible interface for easy integration

Key Technical Parameters

Voltage supply: 1.4V to 3.6V

Temperature sensing range: -40°C to 125°C

Temperature resolution: 12 bits

Accuracy: ±0.5°C (max) from -20°C to 65°C, ±1°C (max) from -40°C to 125°C

Quality and Safety Features

RoHS3 compliant

Tape and reel packaging for surface mount assembly

Compatibility

The TMP112AIDRLR is compatible with I2C-based systems and can be easily integrated into a wide range of applications.

Application Areas

Industrial and commercial temperature monitoring

Consumer electronics

Automotive systems

HVAC and building automation

Medical equipment

Product Lifecycle

The TMP112AIDRLR is an active product and is not nearing discontinuation. Texas Instruments offers replacement and upgrade options as needed.

Key Reasons to Choose This Product

Excellent temperature accuracy and resolution

Ultra-low power consumption for battery-powered applications

Small package size for space-constrained designs

I2C interface for easy integration into existing systems

Wide operating temperature range suitable for diverse applications

RoHS3 compliance for environmental sustainability
