SN74LVC2T45YZPR - Texas Instruments

Manufacturer Part Number

SN74LVC2T45YZPR

Manufacturer

Texas Instruments

Introduction

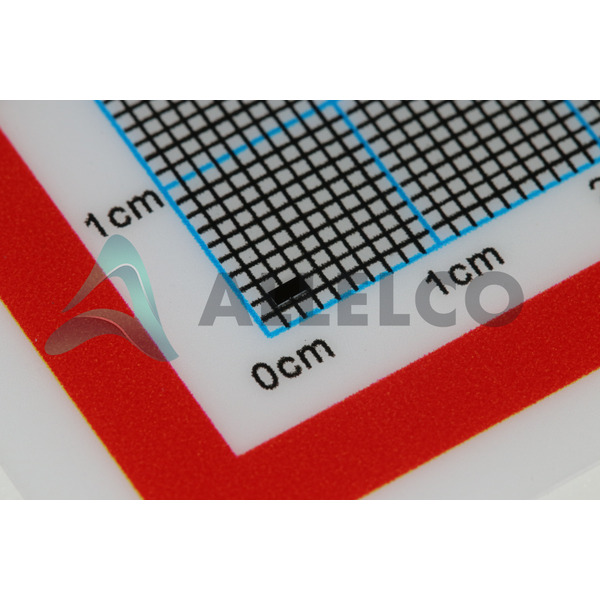

The SN74LVC2T45YZPR is a logic translator device from Texas Instruments, designed for voltage level translation applications. It comes in a highly compact 8-XFBGA, DSBGA package, suitable for surface mounting.

Product Features and Performance

Bidirectional voltage level translation

Dual-channel support

Compatible with 1.65 V to 5.5 V on both VCCA and VCCB

High data rate of 420Mbps

Supports tri-state non-inverted outputs

Operates over a -40°C to 85°C temperature range

Product Advantages

Flexibility in voltage translation between different logic levels

High-speed data transfer capability

Compact 8-DSBGA package saves space on PCB

Low power consumption enhances system efficiency

Key Technical Parameters

Channels per Circuit: 2

Voltage VCCA/VCCB: 1.65 V ~ 5.5 V

Data Rate: 420Mbps

Operating Temperature: -40°C ~ 85°C

Package: 8-XFBGA, DSBGA

Quality and Safety Features

Manufactured by Texas Instruments, a leader in semiconductor solutions

Rigorous quality control and testing standards

Compatibility

Suitable for various logic level translation applications in mixed-voltage systems

Application Areas

Consumer Electronics

Mobile Devices

Computing

Telecommunication Systems

Product Lifecycle

Status: Active

Texas Instruments ensures ongoing production and support, with no current plans for discontinuation.

Several Key Reasons to Choose This Product

High-speed, bidirectional data transfer supports modern digital interfaces.

Flexible voltage compatibility from 1.65V to 5.5V caters to a wide range of logic levels.

Compact and efficient design is ideal for space-constrained applications.

Texas Instruments' reputation for reliability and quality assurance.

Suitable for a broad spectrum of applications, from consumer electronics to advanced telecommunication systems.
