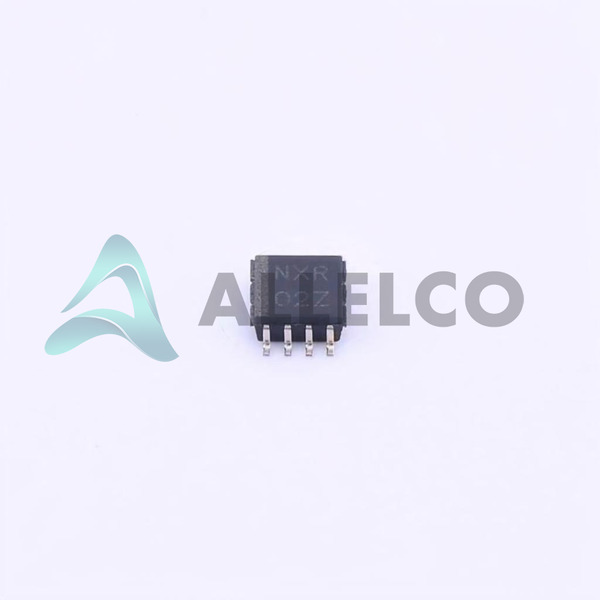

SN74LVC2T45MDCTTEP - Texas Instruments

Manufacturer Part Number

SN74LVC2T45MDCTTEP

Manufacturer

Texas Instruments

Introduction

The SN74LVC2T45MDCTTEP is a voltage level translator from the 74LVC series designed for bidirectional voltage translation between different logic level devices.

Product Features and Performance

Voltage level translation between 1.65 V and 5.5 V

Bidirectional channels

Supports two channels per circuit

High data rate of 420 Mbps

Operates across a wide temperature range from -55°C to 125°C

Tri-state non-inverted output for improved signal integrity

Surface mount package ensures a compact footprint

Product Advantages

Enables communication between devices operating at different voltage levels

High data throughput capability

Stable performance in extreme temperature environments

Space-saving design

Key Technical Parameters

Channels: 2, Bidirectional

Voltage VCCA/VCCB: 1.65 V ~ 5.5 V

Data Rate: 420 Mbps

Operating Temperature: -55°C ~ 125°C

Mounting Type: Surface Mount

Package: 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)

Quality and Safety Features

Manufactured by Texas Instruments, ensuring high reliability and performance

Designed to meet stringent industrial quality and safety standards

Compatibility

Compatible with various logic families due to its wide voltage range

Application Areas

Interface translation in multi-voltage systems

Communication systems

Embedded systems

Data transport applications

Product Lifecycle

Currently active and available product

No indication of discontinuation, ensuring long-term availability

Potential for future upgrades or replacements as technology evolves

Several Key Reasons to Choose This Product

Versatile voltage compatibility ensures integration with existing technology

High-speed data transfer capable of supporting intensive applications

Robust operation in harsh temperature conditions

Compact design facilitates easy incorporation into space-constrained projects

Reliable manufacturer with a strong track record in quality assurance
