Manufacturer Part Number
SN74LVC1G32DPWR
Manufacturer
Texas Instruments
Introduction
Single 2-Input Positive OR Gate
Product Features and Performance
Logic Type: OR Gate
Number of Circuits: 1
Number of Inputs: 2
Voltage - Supply: 1.65V to 5.5V
Current - Quiescent (Max): 10 µA
Current - Output High, Low: 32mA
Max Propagation Delay @ V, Max CL: 4ns @ 5V, 50pF
Operating Temperature Range: -40°C to 125°C
Mounting Type: Surface Mount

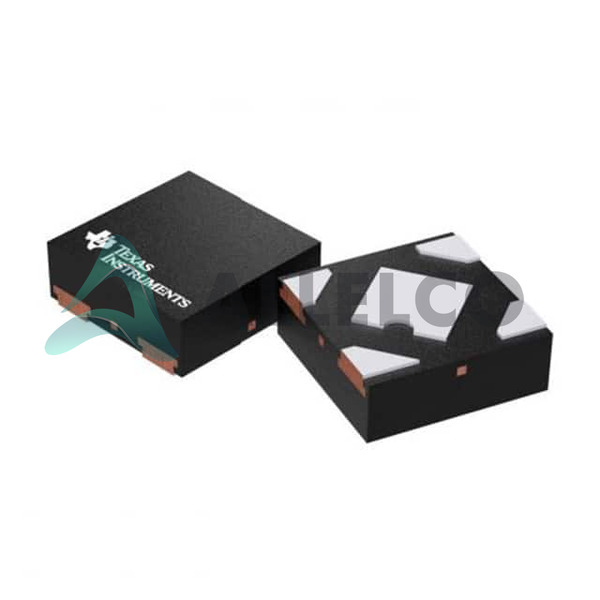

Package / Case: 4-XFDFN Exposed Pad
RoHS Compliant
Product Advantages
Low Quiescent Current
Wide Operating Voltage Range
High Output Current Drive Capacity
Ultra-Small 4-X2SON Package
Key Technical Parameters
Supply Voltage Range: 1.65V ~ 5.5V
Current - Quiescent: 10 µA
Output Current: 32mA
Propagation Delay: 4ns @ 5V, 50pF
Input Logic Level - Low: 0.7V ~ 0.8V
Input Logic Level - High: 1.7V ~ 2V
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Extended Temperature Range
High Reliability
Lead-Free and RoHS Compliant
Compatibility
Compatible with TTL and CMOS Technologies
Application Areas
Consumer Electronics
Telecommunications
Portable Devices
Data Processing
Control Systems
Product Lifecycle
Status: Active
Not Nearing Discontinuation
Availability of Replacements or Upgrades: Not applicable
Reasons to Choose This Product
Wide Supply Voltage Compatibility
Low Power Consumption
Suitable for High-Speed Applications
Supports 5V TTL Levels
Available in Small Size for High-Density Applications
Reliable Performance Across Temperature Extremes
Long-Term Manufacturer Support
