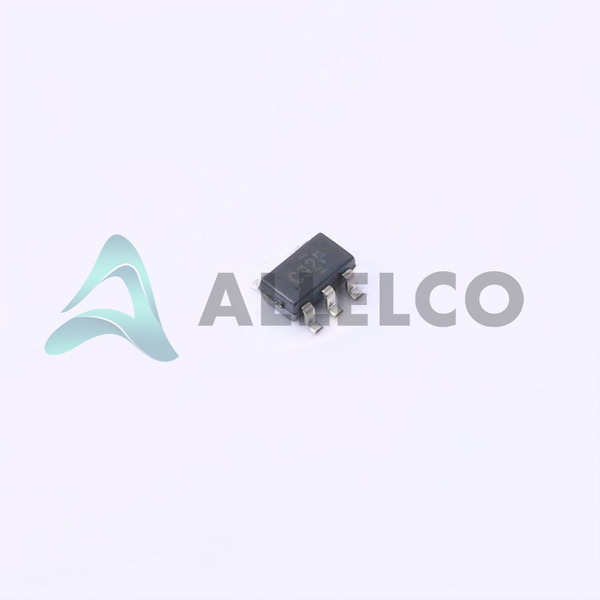

SN74LVC1G32DBVRG4 - Texas Instruments

Manufacturer Part Number

SN74LVC1G32DBVRG4

Manufacturer

texas-instruments

Introduction

This product is a single OR gate from Texas Instruments, specifically designed for logic level shifting and voltage translation applications.

Product Features and Performance

Single 2-input OR Gate

Low power consumption with 10 µA quiescent current

High noise immunity

Output drive capability: 32mA outputs

Fast propagation delay: 4ns at 5V, 50pF

Wide operating voltage range: 1.65V to 5.5V

Input logic level for low: 0.7V to 0.8V

Input logic level for high: 1.7V to 2V

Product Advantages

Efficient power usage and high drive capability suitable for battery-operated devices.

Broad voltage range accommodating various logic systems.

Compact SOT-23-5 package conserves board space.

High tolerance to ambient temperature variations from -40°C to 125°C.

Key Technical Parameters

Logic Type: OR Gate

Number of Circuits: 1

Number of Inputs: 2

Voltage Supply: 1.65V to 5.5V

Current Quiescent (Max): 10 µA

Current Output High, Low: 32mA

Max Propagation Delay @ V, Max CL: 4ns @ 5V, 50pF

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Extensively tested for maximum reliability and safety.

Built to withstand extreme temperatures and high-transient voltages.

RoHS compliant.

Compatibility

Compatible with TTL and CMOS logics at varying supply levels.

Fits perfectly with standard SOT-23-5 footprint.

Application Areas

Timing circuits

High-speed logic systems

Translators in mixed voltage applications

Microprocessor or microcontroller interfaces

Product Lifecycle

Discontinued at Digi-Key

Check for availability of replacements or upgraded versions.

Several Key Reasons to Choose This Product

Provides robust performance with minimal power requirement.

Versatile across multiple power and interfacing standards.

Offers quick response times and efficient space utilization.

Engineered for tough industrial environments offering longevity and reliability.
