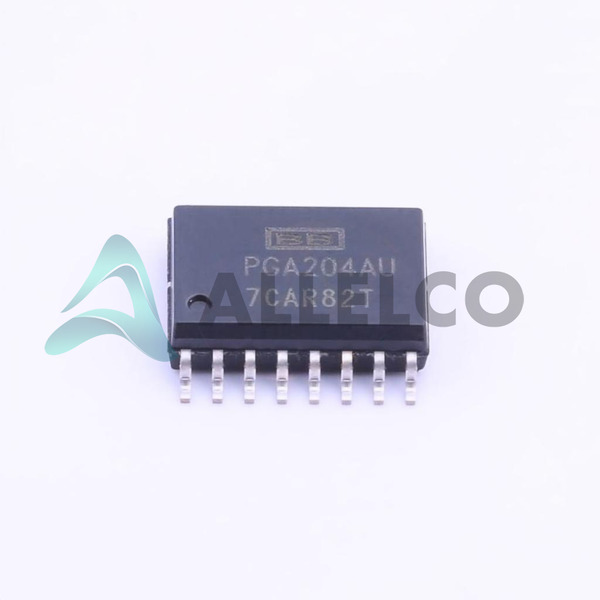

PGA204AU - Texas Instruments

Manufacturer Part Number

PGA204AU

Manufacturer

Texas Instruments

Introduction

High-precision, low-cost instrumentation amplifier

Suitable for a wide range of industrial and medical applications

Product Features and Performance

Single-supply operation from 9V to 36V

Low input offset voltage of 25μV

Low input bias current of 500pA

High common-mode rejection ratio of 100dB

Wide bandwidth of 1MHz

High slew rate of 0.7V/μs

Capable of driving heavy capacitive loads

Product Advantages

Exceptional precision and stability

Wide operating voltage range

Minimal input offset and bias current

Robust common-mode rejection

High-speed amplifier performance

Able to drive challenging loads

Key Technical Parameters

Supply Voltage Range: 9V to 36V

Supply Current: 5.2mA

Input Offset Voltage: 25μV

Input Bias Current: 500pA

Common-Mode Rejection Ratio: 100dB

Bandwidth (-3dB): 1MHz

Slew Rate: 0.7V/μs

Output Current: 23mA

Quality and Safety Features

RoHS3 compliant

16-SOIC package for surface mount assembly

Operational temperature range: -40°C to +85°C

Compatibility

Suitable for a wide range of industrial, medical, and instrumentation applications

Application Areas

Process control

Sensor amplification

Biopotential measurement

Weigh scale design

Test and measurement equipment

Product Lifecycle

The PGA204AU is an active product and is not nearing discontinuation.

Replacements and upgrades are available within the Texas Instruments instrumentation amplifier product line.

Several Key Reasons to Choose This Product

Exceptional precision and stability for demanding applications

Wide operating voltage range and ability to drive heavy loads

Minimal input offset and bias current for high-accuracy measurements

Robust common-mode rejection for noisy environments

High-speed amplifier performance for fast-changing signals

RoHS3 compliance and wide operating temperature range for reliability
