Manufacturer Part Number

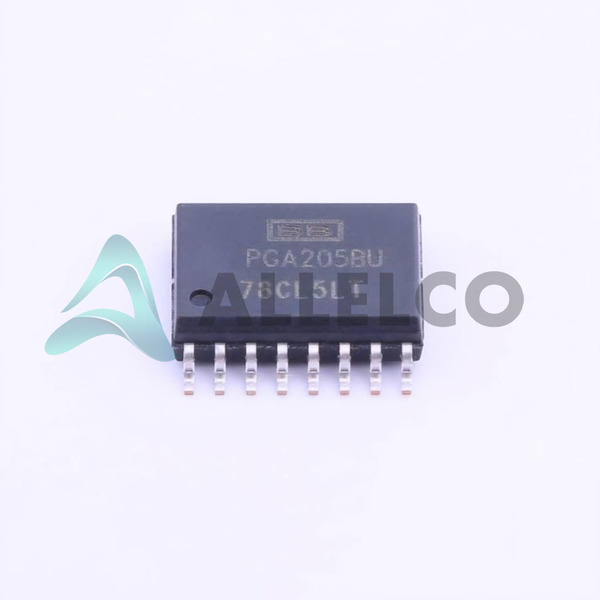

PGA205BU
Manufacturer
Texas Instruments
Introduction
The PGA205BU is a high-performance, low-power instrumentation amplifier from Texas Instruments. It is designed for a wide range of applications, including industrial, medical, and test and measurement equipment.
Product Features and Performance
High input impedance (>10^12 Ω)
Low input bias current (500 pA)
Low input offset voltage (10 μV)
High common-mode rejection ratio (100 dB)
Wide supply voltage range (9V to 36V)
Low quiescent current (5.2 mA)
High output current capability (23 mA)
Slew rate of 0.7 V/μs
Bandwidth of 1 MHz
Product Advantages
Excellent precision and stability
Wide operating temperature range (-40°C to 85°C)
Small footprint (16-SOIC package)
Ease of use and integration
Key Technical Parameters
Manufacturer Part Number: PGA205BU
Package: 16-SOIC
Mounting Type: Surface Mount
Operating Temperature: -40°C to 85°C
Supply Voltage: 9V to 36V
Quiescent Current: 5.2 mA
Output Current: 23 mA
Slew Rate: 0.7 V/μs
Bandwidth: 1 MHz
Quality and Safety Features
RoHS3 compliant
Reliable and robust design
Compatibility
The PGA205BU is compatible with a wide range of electronic systems and can be used in various applications.
Application Areas
Industrial instrumentation
Medical equipment
Test and measurement devices
Data acquisition systems
Process control applications
Product Lifecycle
The PGA205BU is an active product, and Texas Instruments has not announced any plans for its discontinuation. Replacement or upgrade options may be available from Texas Instruments or other manufacturers.
Key Reasons to Choose This Product
Excellent precision and stability for demanding applications
Wide operating temperature range and low power consumption
Compact and easy-to-integrate design
Robust construction and RoHS3 compliance for reliability
Compatibility with a wide range of electronic systems and applications
