MSP430FR2311IPW16R - Texas Instruments

Manufacturer Part Number

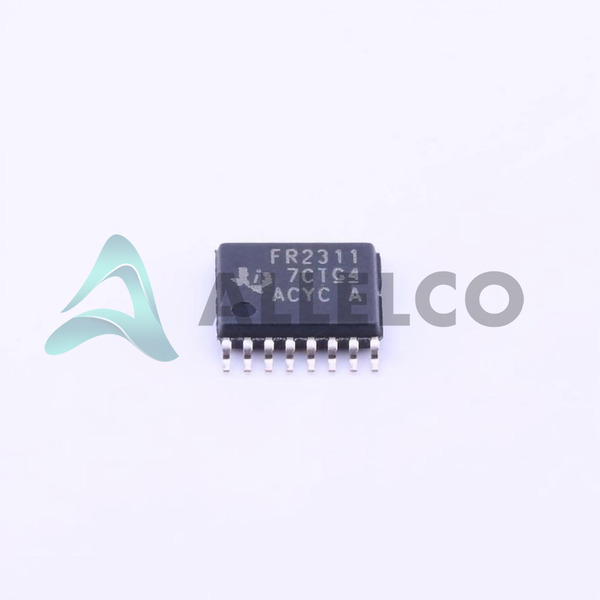

MSP430FR2311IPW16R

Manufacturer

texas-instruments

Introduction

The MSP430FR2311IPW16R is a 16-bit embedded microcontroller from Texas Instruments, designed for low-power and high-performance applications, featuring FRAM technology.

Product Features and Performance

Core: MSP430 CPU16, 16-Bit

Speed: 16MHz

Connectivity: I2C, IrDA, SCI, SPI, UART/USART

Peripherals include Brown-out Detect/Reset, POR, PWM, WDT

Program Memory: 3.75KB FRAM

RAM: 1KB

Data Converters: A/D 8x10b

Oscillator: Internal

Operating Temperature Range: -40°C ~ 85°C

Product Advantages

Low-power consumption enhances battery life

FRAM allows for faster writes and more write cycles than traditional flash

Robust peripheral set supports diverse applications

Wide operating temperature suitable for industrial environments

Key Technical Parameters

Core Size: 16-Bit

Program Memory Size: 3.75KB (3.75K x 8)

RAM Size: 1K x 8

Voltage Supply (Vcc/Vdd): 1.8V ~ 3.6V

Number of I/O: 11

Quality and Safety Features

Brown-out Detect/Reset helps prevent improper operation during low voltage

Watchdog Timer (WDT) for system recovery in event of failure

Compatibility

Compatible with various standard communication protocols including I2C, IrDA, SCI, SPI, UART/USART

Application Areas

Suitable for low-power applications such as wearable devices, sensors, and industrial control systems

Product Lifecycle

Status: Active

Characteristics emphasize longevity with availability for future upgrades

Several Key Reasons to Choose This Product

High-performance 16-bit architecture suitable for various demanding applications

Flexible voltage supply range ensures compatibility with diverse system designs

Internal oscillator reduces external component requirements

Advanced data converters provide precision for critical applications

MSP430™ FRAM series offers reliability and speed in program execution
