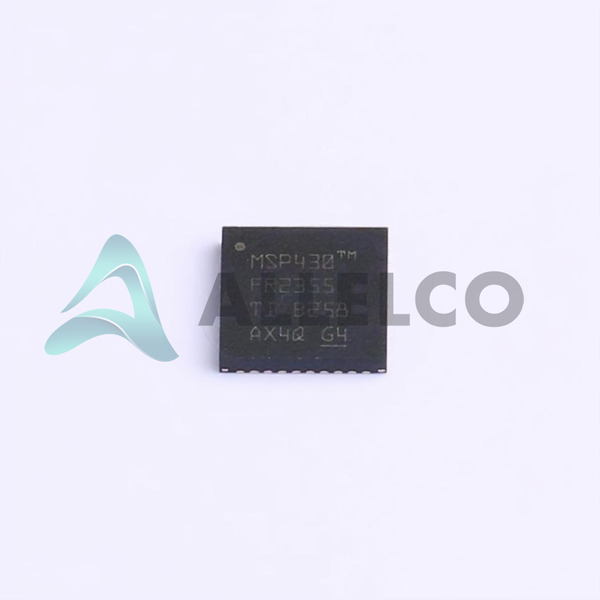

MSP430FR2355TRHAR - Texas Instruments

Manufacturer Part Number

MSP430FR2355TRHAR

Manufacturer

Texas Instruments

Introduction

The MSP430FR2355TRHAR is a 16-bit microcontroller part of the MSP430™ FRAM series designed for low-power and high-performance applications.

Product Features and Performance

16-Bit MSP430 CPU16 Core

Speed up to 24MHz

Integrated FRAM memory

Connectivity options include I2C, IrDA, SCI, SPI, UART/USART

Built-in peripherals such as Brown-out Detect/Reset, POR, PWM, WDT

36 I/O pins

Internal Oscillator

Product Advantages

Low power consumption

Fast write and read access with FRAM

Robust connectivity options for versatile applications

Advanced integrated peripherals for enhanced functionality

Key Technical Parameters

Core Size: 16-Bit

Speed: 24MHz

Program Memory Size: 32KB (32K x 8)

RAM Size: 4K x 8

Voltage Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converters: A/D 10x12b, D/A 4x12b

Operating Temperature: -40°C ~ 105°C

Quality and Safety Features

Brown-out Detect/Reset

Power-on Reset (POR)

Watchdog Timer (WDT)

Compatibility

Compatible with various communication protocols (I2C, IrDA, SCI, SPI, UART/USART)

Surface Mount 40-VQFN (6x6) package supports compact integration

Application Areas

Automotive systems

Industrial automation

Consumer electronics

Power management systems

Product Lifecycle

Currently active product status

Not nearing discontinuation

Options available for future upgrades or updates

Several Key Reasons to Choose This Product

High-speed 24MHz operation enables efficient processing.

Low-power consumption ideal for battery-operated devices.

Versatile programmability with 36 I/O options and various communication protocols.

Durable and reliable operation in extreme temperatures ranging from -40°C to 105°C.

FRAM technology provides superior data retention and fast access speeds.
