HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersMSP430F2001IRSAR

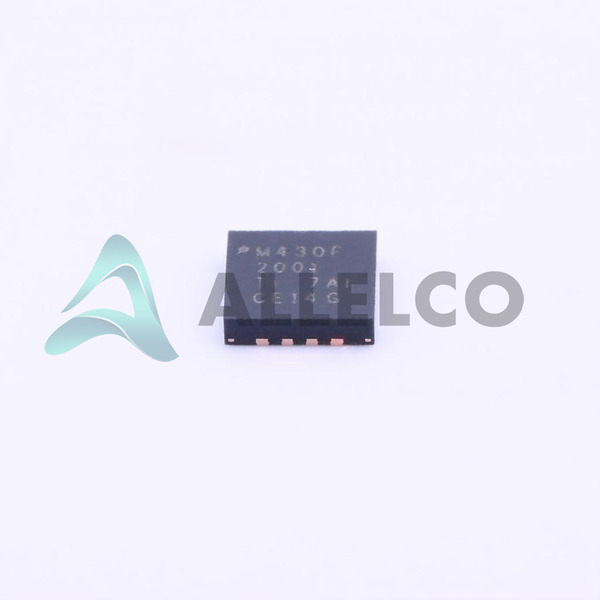

MSP430F2001IRSAR Image
Image may be representation.
See specifications for product details.

MSP430F2001IRSAR - Texas Instruments

Manufacturer Part Number
MSP430F2001IRSAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-MSP430F2001IRSAR
ECAD Model
Parts Description
IC MCU 16BIT 1KB FLASH 16QFN
Detailed Description
Package
16-VQFN Exposed Pad
Data sheet
MSP430x2xx User Guide.pdf
MSP430x20x1,2,3 Datasheet.pdf
RoHs Status
ROHS3 Compliant
In stock: 44500

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

MSP430F2001IRSAR Tech Specifications
Texas Instruments - MSP430F2001IRSAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430F2001IRSAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Supplier Device Package 16-QFN (4x4)
Speed 16MHz
Series MSP430F2xx
RAM Size 128 x 8
Program Memory Type FLASH
Program Memory Size 1KB (1K x 8 + 256B)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Package / Case 16-VQFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 10
Mounting Type Surface Mount
EEPROM Size -
Data Converters Slope A/D
Core Size 16-Bit
Core Processor MSP430 CPU16
Connectivity -
Base Product Number MSP430F2001

Parts Introduction

Manufacturer Part Number

MSP430F2001IRSAR

Manufacturer

Texas Instruments

Introduction

The MSP430F2001IRSAR is a 16-bit microcontroller designed for low-power and high-performance applications, part of the MSP430F2xx series.

Product Features and Performance

16MHz MSP430 CPU16 core for efficient processing

Internal oscillators for reduced external component need

Brown-out Detect/Reset, Power-on Reset (POR), PWM, WDT for reliability and functionality

10 I/O pins for versatile control and interface options

1KB Program Memory and 128B RAM for program and data storage

Slope A/D converter for integrated analog to digital conversion

Internal oscillator to simplify system design

Product Advantages

Low supply voltage range of 1.8V to 3.6V for energy-efficient operation

Compact 16-QFN package for space-sensitive applications

Enhanced CPU core for improved computation and control tasks

Integrated peripherals reduce the need for external components

Key Technical Parameters

Core Processor: MSP430 CPU16

Core Size: 16-Bit

Speed: 16MHz

Program Memory Size: 1KB (1K x 8 + 256B)

RAM Size: 128 x 8

Voltage Supply (Vcc/Vdd): 1.8V ~ 3.6V

Operating Temperature: -40°C ~ 85°C (TA)

Quality and Safety Features

Built-in brown-out and power-on reset circuits to ensure reliable operation under varying power conditions

Compatibility

Compatibility with a wide range of external components through versatile I/O options

Application Areas

Suitable for low-power applications in consumer electronics

Ideal for sensor management, automation, and process control in industrial settings

Product Lifecycle

Currently Active, not nearing discontinuation

Support and upgrades available through Texas Instruments

Several Key Reasons to Choose This Product

The MSP430F2001IRSAR's low-power operation and wide voltage range support energy-efficient designs

High integration of features reduces BOM cost and simplifies design complexity

Robust operation in industrial temperature ranges (-40°C ~ 85°C)

Texas Instruments' reputation for quality and ongoing support ensures long-term reliability and availability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430F2001IRSAR

Product Attribute MSP430F2001IRSAR MSP430F2002TPWR MSP430F2003IRSAR MSP430F168IRTDT
Part Number MSP430F2001IRSAR MSP430F2002TPWR MSP430F2003IRSAR MSP430F168IRTDT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Speed 16MHz 16MHz 16MHz 8MHz
EEPROM Size - - - -
Program Memory Size 1KB (1K x 8 + 256B) 1KB (1K x 8 + 256B) 1KB (1K x 8 + 256B) 48KB (48K x 8 + 256B)
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Core Size 16-Bit 16-Bit 16-Bit 16-Bit
Data Converters Slope A/D A/D 8x10b A/D 10x16b A/D 8x12b; D/A 2x12b
Package / Case 16-VQFN Exposed Pad 14-TSSOP (0.173", 4.40mm Width) 16-VQFN Exposed Pad 64-VFQFN Exposed Pad
Supplier Device Package 16-QFN (4x4) 14-TSSOP 16-QFN (4x4) 64-VQFN (9x9)
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Core Processor MSP430 CPU16 MSP430 CPU16 MSP430 CPU16 MSP430 CPU16
Series MSP430F2xx MSP430F2xx MSP430F2xx MSP430x1xx
RAM Size 128 x 8 128 x 8 128 x 8 2K x 8
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, DMA, POR, PWM, WDT
Base Product Number MSP430F2001 MSP430F2002 MSP430F2003 MSP430F168
Connectivity - I²C, SPI I²C, SPI I²C, SPI, UART/USART
Oscillator Type Internal Internal Internal Internal
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 105°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Number of I/O 10 10 10 48
Program Memory Type FLASH FLASH FLASH FLASH
