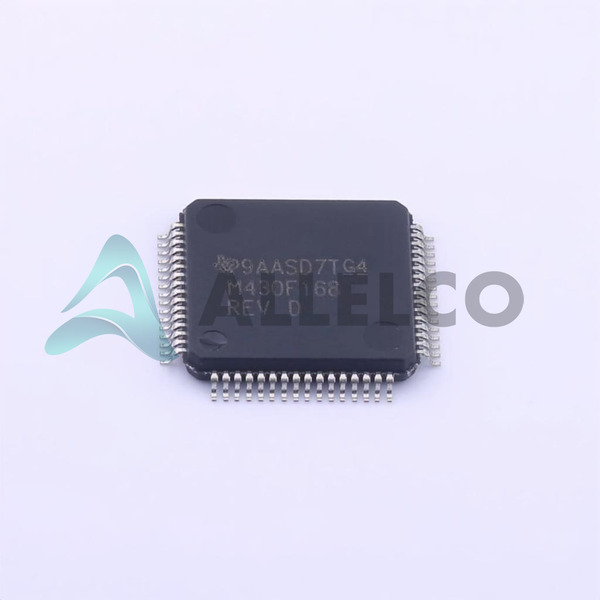

MSP430F168IPMR - Texas Instruments

Manufacturer Part Number

MSP430F168IPMR

Manufacturer

Texas Instruments

Introduction

MSP430F168IPMR is a 16-bit microcontroller designed for low-power and high-performance applications.

Product Features and Performance

16-Bit MSP430 CPU16 core

Speed of 8MHz

Integrated I2C, SPI, UART/USART for connectivity

Brown-out Detect/Reset, DMA, POR, PWM, WDT peripherals

48 programmable I/O pins

48KB FLASH program memory

2KB RAM

On-chip 8-channel 12-bit A/D converter

Dual 12-bit D/A converters

Internal oscillator

8V to 3.6V operation voltage range

Surface Mount 64-LQFP package

64-LQFP (10x10) device size

Product Advantages

Low power consumption for battery-powered devices

Robust set of peripherals for versatile control tasks

Large program memory for complex applications

On-chip data conversion for analog signal processing

Appropriate for various temperature ranges from -40°C to 85°C

Key Technical Parameters

Core Size: 16-Bit

Speed: 8MHz

Number of I/O: 48

Program Memory Size: 48KB

RAM Size: 2K x 8

Supply Voltage Range: 1.8V ~ 3.6V

A/D Converters: 8x12b

D/A Converters: 2x12b

Operating Temperature Range: -40°C ~ 85°C

Quality and Safety Features

Brown-out Detect/Reset for system integrity

Watchdog Timer for system reliability

Power-on Reset ensures a clean start-up sequence

Compatibility

Compatible with a range of development tools and software from Texas Instruments and third-party vendors

Application Areas

Industrial control systems

Sensor monitoring and management

Consumer electronics

Smart battery management

Portable medical devices

Product Lifecycle

Currently active

Not nearing discontinuation

Replacement or upgrade options available through the Texas Instruments MSP430 product family

Several Key Reasons to Choose This Product

Low-power architecture extending battery life

Ample program memory and RAM for complex programs

Wide range of built-in peripherals reducing external component need

High integration for reduced system size and cost

Support and longevity assurances by Texas Instruments

Extensive community and development tools available for rapid prototyping and development
