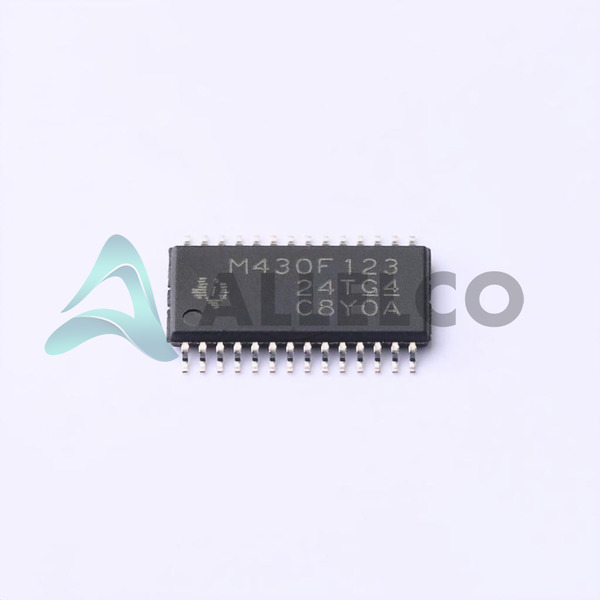

MSP430F123IPW - Texas Instruments

Manufacturer Part Number

MSP430F123IPW

Manufacturer

Texas Instruments

Introduction

The MSP430F123IPW is a 16-bit embedded microcontroller designed for low-power and high-performance applications, featuring digital and analog functionalities.

Product Features and Performance

16-bit MSP430 CPU16 core

Speed of 8MHz

On-chip functionalities including SPI, UART/USART communication

Peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), Watchdog Timer (WDT)

8KB of Flash Program Memory with additional 256 bytes

256 x 8 RAM

Internal Oscillator

Operates at a voltage range of 1.8V to 3.6V

Product Advantages

Low power consumption

High integration of features for complex applications

Flexible voltage range suitable for battery-powered applications

Key Technical Parameters

Core Size: 16-Bit

Speed: 8MHz

Program Memory Size: 8KB (Flash) + 256B

RAM Size: 256 x 8

Voltage Supply: 1.8V to 3.6V

Operating Temperature range: -40°C to 85°C

Quality and Safety Features

Built-in Power-On Reset (POR)

Watchdog Timer (WDT) to prevent system failures

Compatibility

Surface Mount type, fits in a 28-TSSOP package

Supports SPI and UART/USART interfaces

Application Areas

Portable and low-power devices

Industrial controls

Consumer electronics

Automation systems

Product Lifecycle

Currently active product

No indication of discontinuation, with ongoing support and availability

Several Key Reasons to Choose This Product

Energy-efficient operation reduces power costs and enhances battery life

Highly integrated with essential peripherals reducing additional component needs

Robust temperature range (-40°C to 85°C) suitable for harsh environments

Versatile connectivity options providing flexibility in application design Input/Output configurations enhance interface capabilities
