HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersMSP430F1232IPW

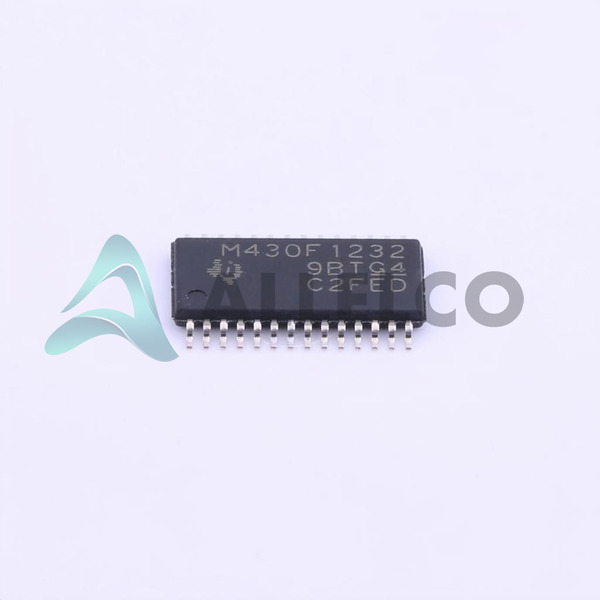

MSP430F1232IPW Image
MSP430F1232IPW Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MSP430F1232IPW - Texas Instruments

Manufacturer Part Number
MSP430F1232IPW
Manufacturer
Texas Instruments
Allelco Part Number
32D-MSP430F1232IPW
ECAD Model
Parts Description
IC MCU 16BIT 8KB FLASH 28TSSOP
Package
28-TSSOP (0.173", 4.40mm Width)
Data sheet
MSP430F11x2/12x2 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 12140

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

MSP430F1232IPW Tech Specifications
Texas Instruments - MSP430F1232IPW technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - MSP430F1232IPW

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Supplier Device Package 28-TSSOP
Speed 8MHz
Series MSP430x1xx
RAM Size 256 x 8
Program Memory Type FLASH
Program Memory Size 8KB (8K x 8 + 256B)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Package / Case 28-TSSOP (0.173", 4.40mm Width)
Package Tube
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 22
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 8x10b
Core Size 16-Bit
Core Processor MSP430 CPU16
Connectivity SPI, UART/USART
Base Product Number MSP430F1232

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

MSP430F1232IPW

Manufacturer

Texas Instruments

Introduction

Low-Power Mixed Signal Microcontroller

Product Features and Performance

16-Bit MSP430 CPU16 Core

8MHz Maximum CPU Speed

8KB Flash Memory with Additional 256B Segment

256 x 8 RAM Size

SPI and UART/USART Connectivity

Peripherals include BOR, POR, PWM, WDT

22 Programmable I/O Pins

10-bit Analog-to-Digital Converter with 8 Channels

Internal Oscillator for Clock Generation

Product Advantages

High-performance and low-power consumption

Embedded microcontroller ideal for battery-powered applications

Extensive built-in peripherals minimize external components

Wide range of communication interfaces

Key Technical Parameters

Core Size: 16-Bit

Speed: 8MHz

Program Memory Size: 8KB (8K x 8 + 256B)

Voltage - Supply: 1.8V ~ 3.6V

Operating Temperature Range: -40°C ~ 85°C

Mounting Type: Surface Mount

Quality and Safety Features

Brown-out Detect/Reset for safe operation

Watchdog Timer to prevent malfunction

Compatibility

Compatible with various MSP430 development tools and software

Standard 28-TSSOP Package suitable for most PCB designs

Application Areas

Consumer Electronics

Sensor Systems

Industrial Control

Remote Monitoring

Portable Devices

Product Lifecycle

Active Product Status

Not reported as nearing discontinuation

Potential future availability of replacements or upgrades

Reasons to Choose This Product

Energy-efficient operation helps to maximize battery life

Robust set of analog and digital peripherals

Flexible programming with ample memory for complex tasks

Wide operating voltage range suitable for diverse applications

Proven technology from Texas Instruments with an extensive support ecosystem

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments MSP430F1232IPW

Product Attribute MSP430F1232IPW MSP430F1232IRHBT MSP430F1232IDW MSP430F122IRHBR
Part Number MSP430F1232IPW MSP430F1232IRHBT MSP430F1232IDW MSP430F122IRHBR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Program Memory Type FLASH FLASH FLASH FLASH
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package Tube Tape & Reel (TR) Tube Tape & Reel (TR)
Connectivity SPI, UART/USART SPI, UART/USART SPI, UART/USART SPI, UART/USART
Oscillator Type Internal Internal Internal Internal
Base Product Number MSP430F1232 MSP430F1232 MSP430F1232 MSP430F122
Package / Case 28-TSSOP (0.173", 4.40mm Width) 32-VFQFN Exposed Pad 28-SOIC (0.295", 7.50mm Width) 32-VFQFN Exposed Pad
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Number of I/O 22 22 22 22
Speed 8MHz 8MHz 8MHz 8MHz
Data Converters A/D 8x10b A/D 8x10b A/D 8x10b Slope A/D
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT POR, PWM, WDT
Supplier Device Package 28-TSSOP 32-VQFN (5x5) 28-SOIC 32-VQFN (5x5)
Core Processor MSP430 CPU16 MSP430 CPU16 MSP430 CPU16 MSP430 CPU16
Core Size 16-Bit 16-Bit 16-Bit 16-Bit
EEPROM Size - - - -
Program Memory Size 8KB (8K x 8 + 256B) 8KB (8K x 8 + 256B) 8KB (8K x 8 + 256B) 4KB (4K x 8 + 256B)
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
RAM Size 256 x 8 256 x 8 256 x 8 256 x 8
Series MSP430x1xx MSP430x1xx MSP430x1xx MSP430x1xx

MSP430F1232IPW Datasheet PDF

Download MSP430F1232IPW pdf datasheets and Texas Instruments documentation for MSP430F1232IPW - Texas Instruments.

HTML Datasheet
MSP430F11x2/12x2 Datasheet.pdf

Customers Also Interested in

Recommended Products

Shipment

Delivery Time

In-stock items can be shipped within 24 hours. Some parts will be arranged for delivery within 1-2 days from the date all items arrive at our warehouse. And Allelco ships order once a day at about 17:00, except Sunday. Once the goods are shipped, the estimated delivery time depends on the shipping methods and Delivery destination. The table below shows are the logistic time for some common countries.

Delivery Cost

  1. Use your express account for shipment if you have one.
  2. Use our account for the shipment. Refer to the table below for the approximate charges.
(Different time frame / countries / package size has different price.)

Delivery Method

  1. Global Common Shipment by DHL / UPS / FedEx / TNT / EMS / SF we support.
  2. Others more shipping ways, please get in touch with your customer manager.

Common Countries Logistic Time Reference
