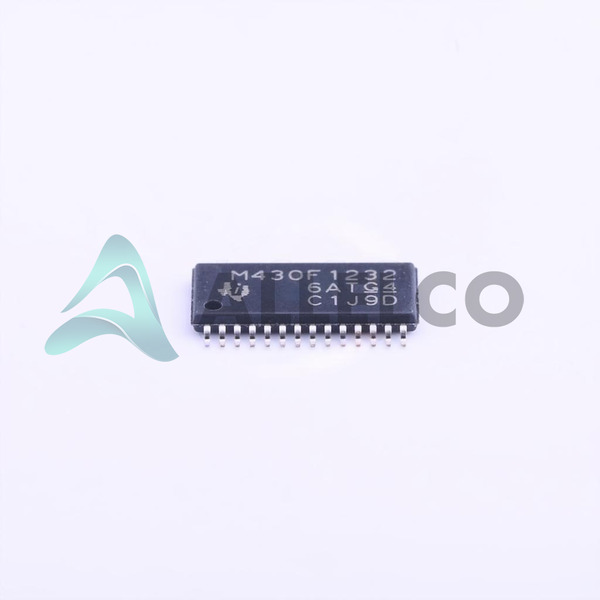

MSP430F1232IPWR - Texas Instruments

Manufacturer Part Number

MSP430F1232IPWR

Manufacturer

Texas Instruments

Introduction

Low-power microcontroller for embedded applications

Product Features and Performance

MSP430 CPU16 core

16-Bit architecture

Maximum Speed of 8MHz

SPI and UART/USART for connectivity

Built-in peripherals - Brown-out Reset, Power-on Reset, PWM, WDT

22 programmable I/O pins

8KB Flash Memory

256 Bytes of RAM

Internal ADC with 8 channels and 10-bit resolution

Internal oscillator for clock generation

Operational in wide temperature range from -40°C to 85°C

Product Advantages

Optimized for low-power consumption

Robust serial communication capabilities

Flexible programmable peripherals

Adequate memory capacity for various applications

Suitable for battery-powered devices

Key Technical Parameters

Core Processor: MSP430 CPU16

Core Size: 16-Bit

Speed: 8MHz

Program Memory Size: 8KB Flash + 256B

RAM Size: 256 x 8

Voltage Supply Range: 1.8V to 3.6V

Data Converters: 8-channel, 10-bit A/D converter

Operating Temperature Range: -40°C to 85°C

Mounting Type: Surface Mount

Package: 28-TSSOP

Quality and Safety Features

Brown-out Detect/Reset ensures proper operation under fluctuating power conditions

Watchdog Timer to prevent system hang-ups

Compatibility

Compatible with various MSP430 development tools

Easy to integrate with other Texas Instruments components

Application Areas

Low-power embedded systems

Portable medical devices

Sensor monitoring

Industrial control systems

Consumer electronics

Product Lifecycle

Currently active

Not indicated as nearing discontinuation

Potential upgrades or replacements subject to Texas Instruments' product roadmap

Several Key Reasons to Choose This Product

Efficient power management for battery longevity

Comprehensive set of integrated peripherals reduces external components

Friendly development environment

Texas Instruments' reputation for reliability and support

Scalability within the MSP430 product family

Graceful degradation features such as Brown-out detect and Power-on Reset
