Manufacturer Part Number
CSD75207W15
Manufacturer
Texas Instruments
Introduction
Discrete Semiconductor Products
Transistors FETs, MOSFETs Arrays
Product Features and Performance
RoHS3 Compliant

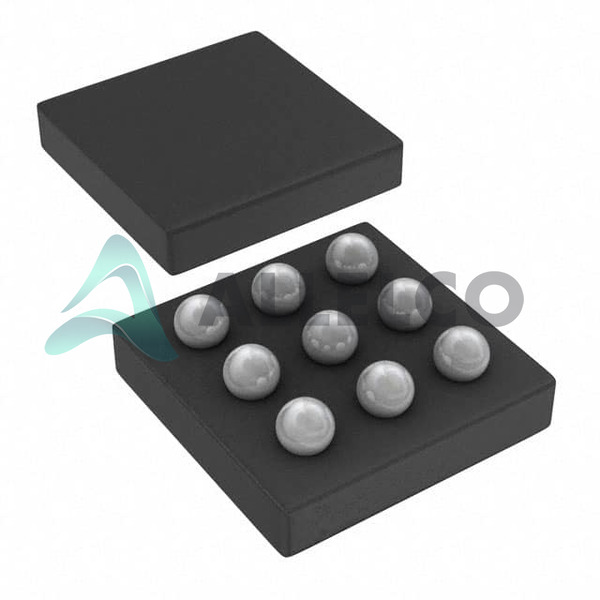

9-DSBGA Manufacturer's packaging
9-UFBGA, DSBGA Package / Case
9-DSBGA Supplier Device Package
NexFET Series
Tape & Reel (TR) Package
-55°C ~ 150°C (TJ) Operating Temperature
700mW Power Max
2 P-Channel (Dual) Common Source Configuration
162mOhm Rds On (Max) @ Id, Vgs
MOSFET (Metal Oxide) Technology
9A Current Continuous Drain (Id) @ 25°C
595pF Input Capacitance (Ciss) (Max) @ Vds
Logic Level Gate FET Feature
1V Vgs(th) (Max) @ Id
7nC Gate Charge (Qg) (Max) @ Vgs
Surface Mount Mounting Type
Product Advantages
RoHS3 Compliant
Wide Operating Temperature Range
High Power Handling Capability
Low On-Resistance
Dual P-Channel Configuration
Logic Level Gate
Key Technical Parameters
Manufacturer Part Number: CSD75207W15
Manufacturer: Texas Instruments
Package / Case: 9-UFBGA, DSBGA
Rds On (Max) @ Id, Vgs: 162mOhm @ 1A, 1.8V
Current Continuous Drain (Id) @ 25°C: 3.9A
Input Capacitance (Ciss) (Max) @ Vds: 595pF @ 10V
Vgs(th) (Max) @ Id: 1.1V @ 250A
Gate Charge (Qg) (Max) @ Vgs: 3.7nC @ 4.5V
Quality and Safety Features
RoHS3 Compliant
Compatibility
Surface Mount Mounting Type
Application Areas
Discrete Semiconductor Products
Transistors FETs, MOSFETs Arrays
Product Lifecycle
Current product, no indication of discontinuation
Several Key Reasons to Choose This Product
RoHS3 Compliant
Wide Operating Temperature Range (-55°C ~ 150°C)
High Power Handling Capability (700mW)
Low On-Resistance (162mOhm)
Dual P-Channel Configuration
Logic Level Gate
Surface Mount Packaging
