Manufacturer Part Number

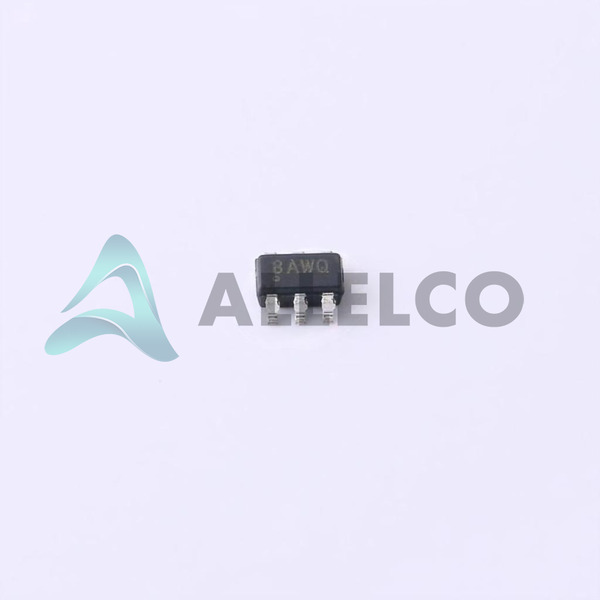

ADS7887SDBVR
Manufacturer
Texas Instruments
Introduction
The ADS7887SDBVR is a high-performance, microPOWER™ series 10-bit analog to digital converter (ADC) from Texas Instruments, designed for data acquisition in energy-sensitive applications.
Product Features and Performance
10-bit resolution
High sampling rate of 1.25M samples per second
Single-ended input
SPI data interface for easy integration
Sample-and-Hold (S/H) circuit with a 1:1 ratio
Successive Approximation Register (SAR) architecture
Operates with supply voltages from 2.35V to 5.25V
Capable of operating in temperatures ranging from -40°C to 125°C
Product Advantages
Low power consumption perfect for battery-powered devices
High-speed ADC capability allows for accurate, real-time data processing
Flexible supply voltage compatibility
Compact SOT-23-6 package saves PCB space
Key Technical Parameters
Number of Bits: 10
Sampling Rate: 1.25M samples/second
Number of Inputs: 1
Input Type: Single Ended
Data Interface: SPI
Reference Type: Supply
Voltage Supply, Analog: 2.35V ~ 5.25V
Voltage Supply, Digital: 2.35V ~ 5.25V
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Built with Texas Instruments' rigorous quality standards
Reliable performance in extreme temperature conditions
Compatibility
SPI interface ensures compatibility with most microcontrollers and digital systems
Application Areas
Portable and battery-powered devices
Data acquisition systems
Medical instrumentation
Industrial control
Product Lifecycle
Status: Active
This product is not nearing discontinuation, with Texas Instruments supporting ongoing production and supply.
Several Key Reasons to Choose This Product
Low power consumption extends the battery life of portable devices.
High sampling rate enables precise and efficient data acquisition.
Wide operating temperature range ensures reliability in varied environments.
Flexible voltage supply options allow for versatile system design.
Compact package ideal for space-constrained applications.
Supported by Texas Instruments, a leader in semiconductor solutions.
