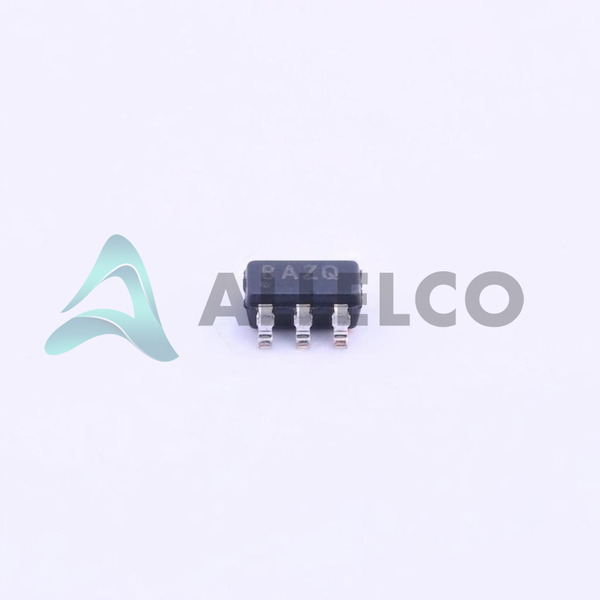

ADS7888SDBVT - Texas Instruments

Manufacturer Part Number

ADS7888SDBVT

Manufacturer

Texas Instruments

Introduction

The ADS7888 is a high-speed, microPOWER™, 8-bit analog-to-digital converter from Texas Instruments, designed for data acquisition systems.

Product Features and Performance

8-bit resolution

Sampling rate of 1.25 MSPS

Single-ended input

SPI Data Interface

Sample-and-Hold ADC Configuration

Successive Approximation Register (SAR) Architecture

Operating Temperature range from -40°C to 125°C

microPOWER™ technology for low power consumption

Product Advantages

Optimized for battery-powered applications due to low power design

High-speed performance suitable for high-rate data acquisition

Wide operating temperature range ensures reliability in extreme conditions

Small SOT-23-6 package suitable for space-constrained applications

Key Technical Parameters

Number of Bits: 8

Sampling Rate: 1.25M samples per second

Number of Inputs: 1

Input Type: Single Ended

Data Interface: SPI

Number of A/D Converters: 1

Voltage - Supply, Analog: 2.35V to 5.25V

Voltage - Supply, Digital: 2.35V to 5.25V

Package / Case: SOT-23-6

Quality and Safety Features

Robust design to operate in industrial temperature ranges

Precision manufacturing for consistent performance

Compatibility

SPI interface for easy integration with most microcontrollers

Flexible supply voltage for both analog and digital parts compatible with a range of systems

Application Areas

Portable instrumentation

Battery-operated devices

Data acquisition systems

Medical instruments

Consumer electronics

Product Lifecycle

Active status, not nearing discontinuation

Availability of replacements or upgrades not specified

Several Key Reasons to Choose This Product

High-speed data acquisition capability for real-time processing

Ultra-low power consumption suitable for portable, battery-operated applications

Texas Instruments' proven reliability and performance

Compact form factor for design flexibility

Wide supply voltages making it adaptable to various applications
