Manufacturer Part Number

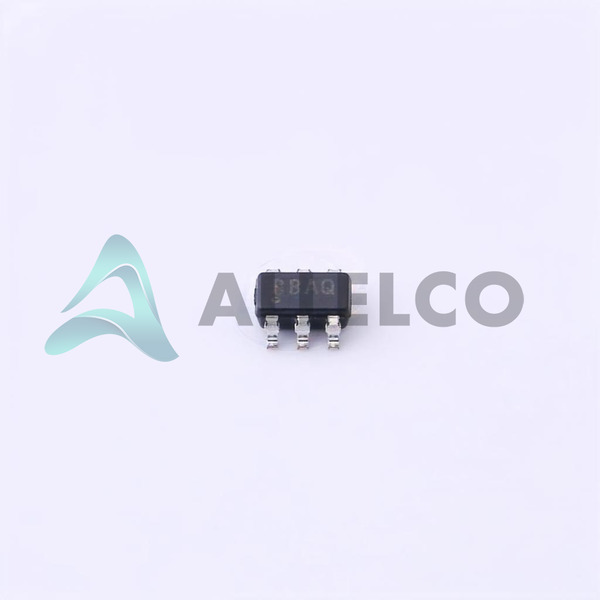

ADS7886SDBVR
Manufacturer
Texas Instruments
Introduction
Compact, high-speed 12-bit analog-to-digital converter
Product Features and Performance
12-bit resolution
1 MSPS sampling rate
Single-ended input
SPI data interface
microPOWER™ series for low power operations
Successive Approximation Register (SAR) architecture
Operates from a single power supply
Product Advantages
High-speed data acquisition
Low power consumption
Supports a wide range of supply voltages
Designed for high-temperature environments
Key Technical Parameters
Number of Bits: 12
Sampling Rate: 1M samples per second
Number of Inputs: 1
Input Type: Single Ended
Data Interface: SPI
Architecture: SAR
Voltage Supply, Analog: 2.35V to 5.25V
Voltage Supply, Digital: 2.35V to 5.25V
Operating Temperature: -40°C to 125°C
Quality and Safety Features
Designed for reliable operation in extreme temperatures
Robust SAR architecture for consistent performance
Compatibility
SPI interface compatible with a broad range of microcontrollers and digital systems
Application Areas
Embedded systems
Medical devices
Industrial control
Data acquisition systems
Portable instruments
Product Lifecycle
Active product
Not nearing discontinuation
Future replacements or upgrades should follow Texas Instruments’ product roadmap
Several Key Reasons to Choose This Product
High precision with 12-bit resolution
Fast conversion speeds suitable for real-time applications
Energy-efficient design enhances battery life in portable devices
Wide operating temperature range catering to industrial applications
Ease of integration with SPI-compatible devices
Availability of technical support and documentation from Texas Instruments
