Manufacturer Part Number

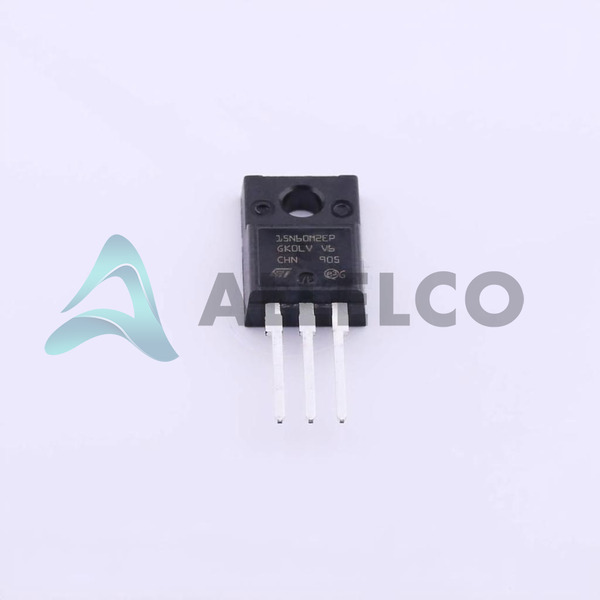

STF15N60M2-EP
Manufacturer
STMicroelectronics
Introduction
High-performance N-channel power MOSFET with low on-resistance and high-voltage capability.
Product Features and Performance
Optimized for hard switching and resonant applications
Excellent performance for power switching and motor drive applications
Very low on-resistance to minimize conduction losses
High voltage rating of 600V
Low gate charge for efficient switching
Wide operating temperature range of -55°C to 150°C
Product Advantages
High efficiency due to low on-resistance
Reliable and robust performance
Suitable for a wide range of power conversion applications
Key Technical Parameters
Drain-Source Voltage (Vdss): 600V
Gate-Source Voltage (Vgs): ±25V
On-Resistance (Rds(on)): 378mΩ @ 5.5A, 10V
Continuous Drain Current (Id): 11A @ 25°C
Input Capacitance (Ciss): 590pF @ 100V
Power Dissipation (Pd): 25W @ TC
Quality and Safety Features
RoHS3 compliant
TO-220FP package for reliable thermal management
Compatibility
Suitable for a wide range of power conversion and motor drive applications.
Application Areas
Switching mode power supplies
Motor drives
Inverters
Uninterruptible power supplies
Industrial and consumer electronics
Product Lifecycle
This product is currently in production and is not nearing discontinuation. Replacement or upgrade options are available from the manufacturer.
Key Reasons to Choose This Product
Excellent efficiency and low conduction losses due to low on-resistance
Reliable and robust performance across a wide temperature range
Suitable for a variety of power conversion and motor drive applications
RoHS3 compliance for environmentally-friendly design
Readily available and supported by the manufacturer
