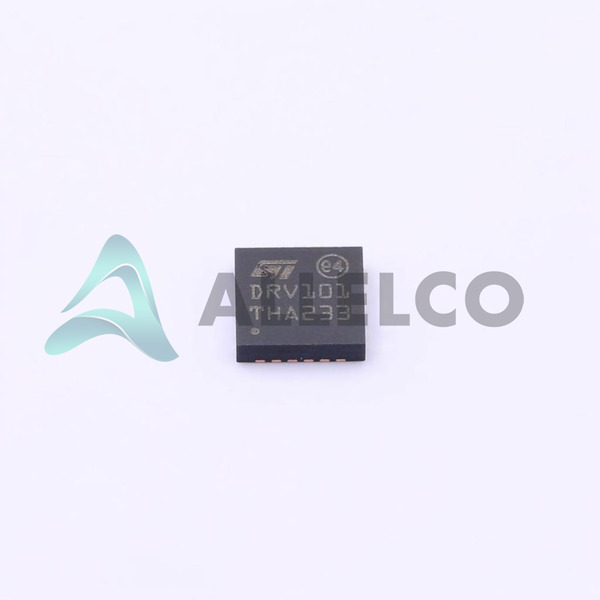

Manufacturer Part Number
STDRIVE101TR
Manufacturer
stmicroelectronics
Introduction
Integrated high-voltage half-bridge driver
Product Features and Performance
Half Bridge (3) output configuration
Support for Capacitive and Resistive load types
Power MOSFET, IGBT technology
Bootstrap Circuit feature
Fault Protection for Over Current, Over Temperature, UVLO
Product Advantages
High voltage rating up to 580V for load
Efficient power management for DC and General Purpose applications
Key Technical Parameters
Rds On at 35Ohm typically
Peak Output Current of 430mA
Operating Supply Voltage from 9V to 20V
Operational Temperature Range -40°C to 125°C
Quality and Safety Features
Embedded fault protection mechanisms
Robust operational temperature range ensuring reliability
Compatibility
Interfacing capabilities with Analog and Logic signals
Application Areas
DC Motor control systems
General purpose power management
Product Lifecycle
Status: Active
Monitoring for updates on discontinuation and replacements
Several Key Reasons to Choose This Product
Capability to handle high-voltage applications
Wide operating voltage and temperature range
Surface mountable (24-VFQFN Exposed Pad)
Fault protection enhances durability and safety
Tape & Reel packaging for efficient mass production
Designed for a variety of power management applications
