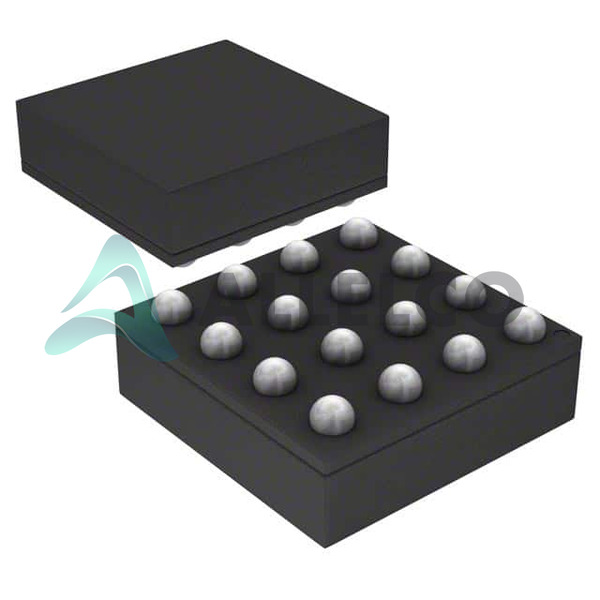

Manufacturer Part Number
EMIF06-MSD03F3
Manufacturer
STMicroelectronics
Introduction
EMI filtering component for mobile device data lines.
Product Features and Performance
6-channel EMI filter
2nd order low pass filter
RC (Pi) technology
Integrated ESD protection
Small package size for space-saving design
Product Advantages
Effective suppression of EMI/RFI noise on data lines
Built-in ESD protection reduces additional component requirements
Compact design ideal for mobile devices
Enhanced signal integrity for high-speed data lines
Key Technical Parameters
Type: Low Pass
Filter Order: 2nd
Number of Channels: 6
Center / Cutoff Frequency: 550MHz
Resistance - Channel (Ohms): 40
Values: R = 40 Ohms, C = 7.5pF (Total)
Operating Temperature Range: -40°C to 85°C
Quality and Safety Features
Robust construction to withstand harsh environments
Compliance with industry safety and quality standards
Compatibility
Optimized for data lines in mobile devices
Surface Mount device compatible with standard PCB technology
Application Areas
Mobile device data lines
High-speed digital interfaces
Product Lifecycle
Obsolete product
Subject to availability
Potential replacements or upgrades may be available
Several Key Reasons to Choose This Product
Designed by STMicroelectronics, a leader in semiconductor solutions
Highly integrated device simplifying circuit design
Protects sensitive mobile device circuits against EMI/RFI and ESD
Preserves signal quality at high-speed data rates
Ultra-compact footprint suitable for modern mobile devices
