Manufacturer Part Number

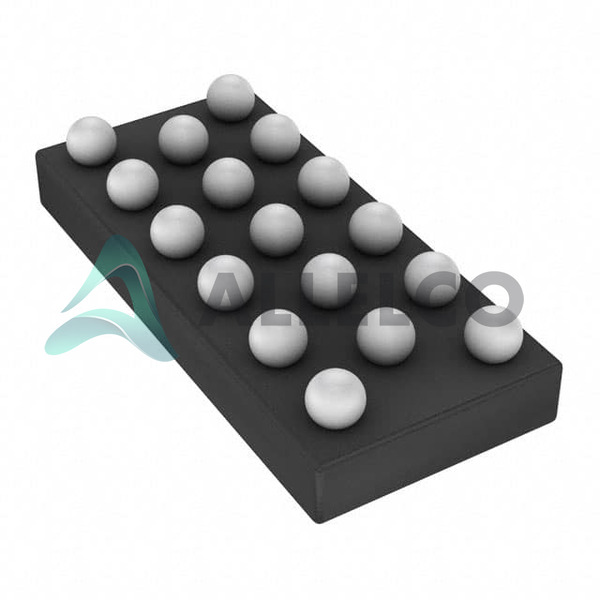

EMIF06-HSD03F3

Manufacturer

STMicroelectronics

Introduction

Integrated EMI filter for data lines in mobile devices

Product Features and Performance

Low Pass Filter

3rd Filter Order

RLC Technology

Six Channels

1 Ohm Channel Resistance

L = 1nH Inductance, C = 2.5pF Capacitance

ESD Protection Included

Surface Mount Type

17-WFBGA, FCBGA Package

Operates at Temperatures from -30°C to 85°C

Product Advantages

Optimized for High-Speed Differential Interfaces

Designed to Suppress Unwanted EMI/RFI Signals

Low Channel Resistance to Minimize Signal Attenuation

Includes ESD Protection for Enhanced Device Safety

Compact 17-WFBGA Package for Space-Constrained Applications

Key Technical Parameters

Filter Type: Low Pass

Number of Channels: 6

Resistance - Channel: 1 Ohm

Values: L = 1nH, C = 2.5pF

Operating Temperature Range: -30°C ~ 85°C

Quality and Safety Features

Built-in ESD Protection

Complies with Industry Safety and Quality Standards

Compatibility

Suitable for Data Lines in a Wide Range of Mobile Devices

Application Areas

Mobile Phones

Tablets

Portable Electronics

Data Line Filtering and Protection

Product Lifecycle

Product Status: Active

No Indication of Discontinuation

Options Available for Replacements or Upgrades

Several Key Reasons to Choose This Product

Enhances Signal Integrity in Mobile Device Data Lines

Offers Six Channels of Filtering to Accommodate Multiple Lines

Embedded ESD Protection to Safeguard Against Electrical Transients

Ultra-compact Package Saves Space on PCBs

Well-suited for High-Volume Manufacturing with Tape & Reel Packaging

Designed by a Leading Semiconductor Manufacturer with a Strong Reputation for Quality
