HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching ControllersTPS40057PWPR
Texas Instruments

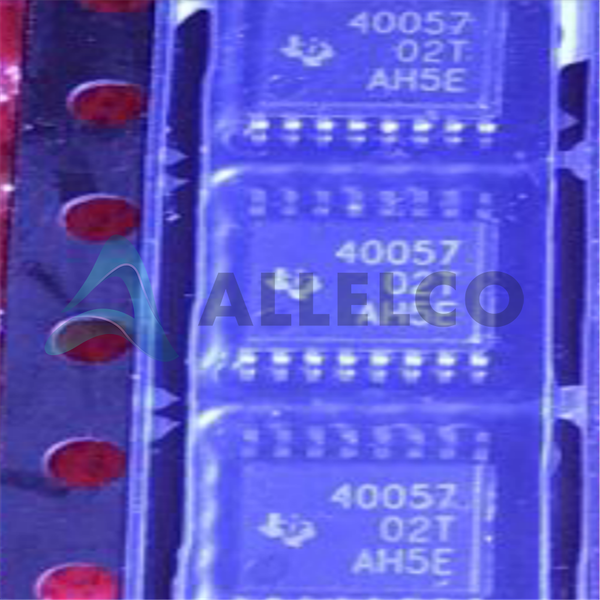

Image may be representation.
See specifications for product details.

TPS40057PWPR - Texas Instruments

Manufacturer Part Number
TPS40057PWPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS40057PWPR
ECAD Model
Parts Description
IC REG CTRLR BUCK 16HTSSOP
Detailed Description
Package
16-PowerTSSOP (0.173", 4.40mm Width)
Data sheet
TPS40054/55/57.pdf
RoHs Status
ROHS3 Compliant
In stock: 17553

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS40057PWPR Tech Specifications
Texas Instruments - TPS40057PWPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS40057PWPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) 8V ~ 40V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 16-HTSSOP
Series -
Serial Interfaces -
Package / Case 16-PowerTSSOP (0.173", 4.40mm Width)
Package Tape & Reel (TR)
Output Type Transistor Driver
Output Phases 1
Product Attribute Attribute Value
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching Up to 1MHz
Duty Cycle (Max) 94%
Control Features Current Limit, Enable, Frequency Control, Soft Start
Clock Sync Yes
Base Product Number TPS40057

Parts Introduction

Manufacturer Part Number

TPS40057PWPR

Manufacturer

Texas Instruments

Introduction

The TPS40057PWPR is a high-performance, single-channel, synchronous step-down DC-DC switching controller from Texas Instruments.

Product Features and Performance

Operates from an input voltage range of 8V to 40V

Supports switching frequencies up to 1MHz

Includes current limiting, enable, frequency control, and soft-start functions

Synchronous rectification for high efficiency

1-phase output configuration

Maximum duty cycle of 94%

Product Advantages

Wide input voltage range

High switching frequency capability

Advanced control features for improved performance

Efficient synchronous rectification

Compact 16-pin HTSSOP package

Key Technical Parameters

Input Voltage Range: 8V to 40V

Switching Frequency: Up to 1MHz

Output Configuration: 1-phase

Maximum Duty Cycle: 94%

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Offered in a 16-pin HTSSOP package

Compatibility

The TPS40057PWPR is compatible with a wide range of electronic devices and applications that require a high-performance, configurable step-down DC-DC converter.

Application Areas

Industrial equipment

Telecommunications equipment

Automotive electronics

Portable and battery-powered devices

Product Lifecycle

The TPS40057PWPR is an active product and is currently available. There are no immediate plans for discontinuation, and replacement or upgrade options may be available from Texas Instruments.

Key Reasons to Choose This Product

Wide input voltage range for versatile applications

High switching frequency for efficient power conversion

Advanced control features for improved performance and reliability

Efficient synchronous rectification for high power conversion efficiency

Compact package size for space-constrained designs

RoHS3 compliance for use in a variety of applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS40057PWPR

Product Attribute TPS40057PWPR TPS40056PWP TPS40060PWP TPS40060PWPR
Part Number TPS40057PWPR TPS40056PWP TPS40060PWP TPS40060PWPR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Duty Cycle (Max) 94% 90% 98% 98%
Clock Sync Yes Yes Yes Yes
Supplier Device Package 16-HTSSOP 16-HTSSOP 16-HTSSOP 16-HTSSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Frequency - Switching Up to 1MHz 100kHz ~ 1MHz Up to 1MHz Up to 1MHz
Base Product Number TPS40057 TPS40056 TPS40060 TPS40060
Output Configuration Positive Positive Positive Positive
Synchronous Rectifier Yes Yes Yes Yes
Series - - - -
Function Step-Down Step-Down Step-Down Step-Down
Serial Interfaces - - - -
Topology Buck Buck Buck Buck
Package Tape & Reel (TR) Tube Tube Tape & Reel (TR)
Output Phases 1 1 1 1
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Voltage - Supply (Vcc/Vdd) 8V ~ 40V 10V ~ 40V 10V ~ 55V 10V ~ 55V
Package / Case 16-PowerTSSOP (0.173", 4.40mm Width) 16-PowerTSSOP (0.173', 4.40mm Width) 16-PowerTSSOP (0.173", 4.40mm Width) 16-PowerTSSOP (0.173", 4.40mm Width)
Control Features Current Limit, Enable, Frequency Control, Soft Start Current Limit, Enable, Frequency Control, Soft Start Current Limit, Enable, Frequency Control, Soft Start Current Limit, Enable, Frequency Control, Soft Start
Number of Outputs 1 1 1 1
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)

TPS40057PWPR Datasheet PDF

Download TPS40057PWPR pdf datasheets and Texas Instruments documentation for TPS40057PWPR - Texas Instruments.

PCN Design/Specification
Design 22/Feb/2022.pdf TPS4005x Desing Revision 20/Feb/2014.pdf
PCN Packaging
Symbolization Update 14/Feb/2023.pdf
HTML Datasheet
TPS40054/55/57.pdf
PCN Assembly/Origin
TPS40057PWPx/TPS63700DRCx 16/Jun/2022.pdf
