Manufacturer Part Number

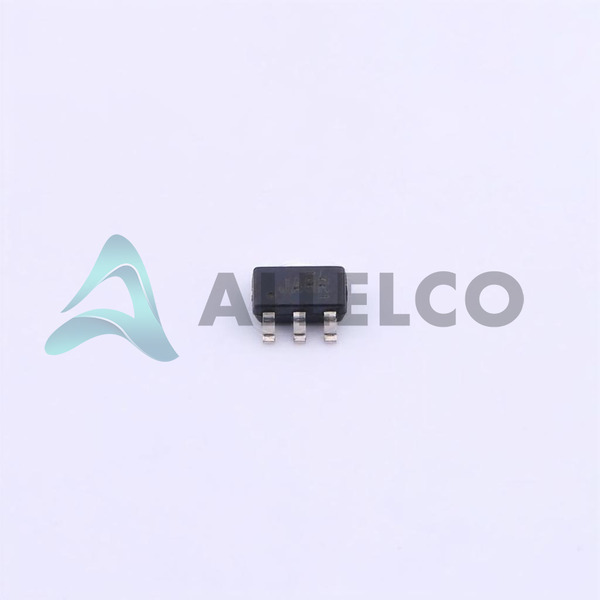

TS5A3159MDBVREP
Manufacturer
Texas Instruments
Introduction
High-performance, single-pole double-throw (SPDT) analog switch
Product Features and Performance
Precision signal routing with low on-state resistance
High-speed switching performance
Wide operating voltage range
Low charge injection for accurate signal processing
Low crosstalk and channel-to-channel mismatch enhances signal integrity
Extended temperature range for reliability in various environments
Product Advantages
Optimized for low-voltage and portable applications
Minimized signal distortion and error
Robust design suitable for industrial applications
Key Technical Parameters
SPDT switch configuration
1Ohm maximum on-state resistance
100mOhm channel-to-channel matching (ΔRon)
65V to 5.5V single supply voltage
100MHz -3db bandwidth
36pC charge injection
23pF off-channel capacitance
4nA maximum leakage current
-65dB crosstalk at 1MHz
35ns/20ns max switch on/off time
Quality and Safety Features
Wide operating temperature range: -55°C to 125°C
Surface mount package for secure PCB mounting
Compatibility
SOT-23-6 package compatible with standard SMT processes
Application Areas
Telecommunications
Data acquisition systems
Test equipment
Audio and video signal routing
Portable electronics
Product Lifecycle
Active status with available replacements and upgrades
Several Key Reasons to Choose This Product
Superior analog signal integrity for precision applications
High-speed operation suitable for modern digital systems
Low power consumption extending battery life in portable devices
Versatile supply voltage range suitable for a variety of power configurations
Rugged design ensures performance stability over a wide temperature range
Low control-voltage logic compatibility facilitating interface with microcontrollers and digital logic systems
