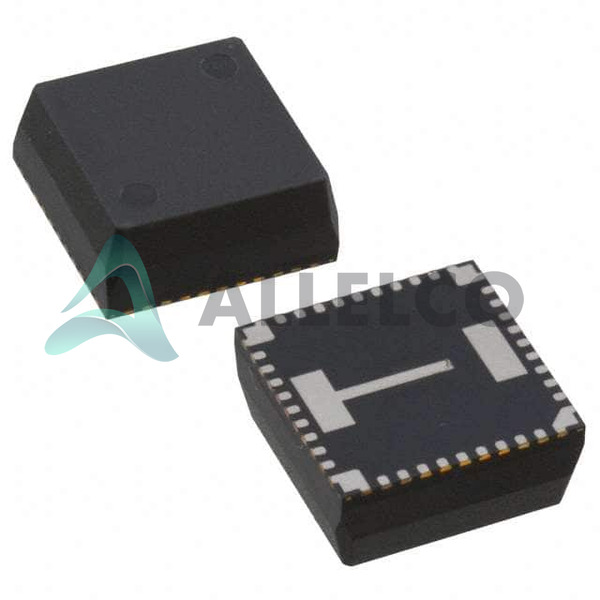

TPS84A20RVQR - Texas Instruments

Manufacturer Part Number

TPS84A20RVQR

Manufacturer

Texas Instruments

Introduction

The TPS84A20RVQR is a high-performance, adjustable step-down (buck) converter from Texas Instruments' Eco-Mode™ series, specialized in power management and DC to DC switching regulators.

Product Features and Performance

Efficient Eco-Mode™ operation

Adjustable output voltage from 0.6V to 5.5V

High output current capability of up to 10A

Wide input voltage range from 2.95V to 17V

Flexible switching frequency from 200kHz to 1.2MHz

Supports synchronous rectification for improved efficiency

Operates within a wide temperature range of -40°C to 85°C

Product Advantages

Enhanced power efficiency under light loads through Eco-Mode™

Versatility in application due to its wide input and output voltage range

Supports high-density power designs owing to its compact 42-BQFN module footprint

Key Technical Parameters

Voltage Input (Min): 2.95V

Voltage Input (Max): 17V

Voltage Output (Min/Fixed): 0.6V

Voltage Output (Max): 5.5V

Current Output: 10A

Frequency Switching: 200kHz ~ 1.2MHz

Quality and Safety Features

Built-in over-current and thermal protection

High reliability and long service life under extended temperature ranges

Compatibility

Suitable for surface mount technology (SMT) on PCBs

Compatible with a wide array of electronic devices requiring adjustable power supply

Application Areas

Consumer Electronics

Telecommunications

Networking Equipment

Computing Systems

Industrial Applications

Product Lifecycle

Status: Active

Not nearing discontinuation with ongoing support and availability

Options for upgrades or replacements based on project requirements

Several Key Reasons to Choose This Product

High efficiency and power saving with Eco-Mode™ under light loads

Flexible for various design needs due to its adjustable output and wide input range

Compact size enables integration into space-constrained applications

Reliable performance under varying temperature conditions

Supports design simplification and rapid deployment with its surface-mount package
