HomeProductsPower Supplies - (Board Mount)DC DC ConvertersTPS84621RUQT

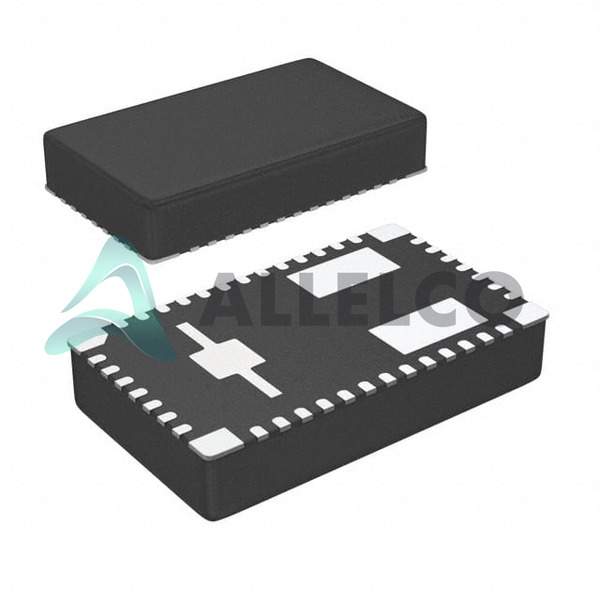

TPS84621RUQT Image
TPS84621RUQT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS84621RUQT - Texas Instruments

Manufacturer Part Number
TPS84621RUQT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS84621RUQT
ECAD Model
Parts Description
DC DC CONVERTER 0.6-5.5V
Detailed Description
Package
47-BQFN Module
Data sheet
TPS84621.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 2953

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS84621RUQT Tech Specifications
Texas Instruments - TPS84621RUQT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS84621RUQT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 3 -
Voltage - Output 2 -
Voltage - Output 1 0.6 ~ 5.5V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14.5V
Type Non-Isolated PoL Module
Supplier Device Package 47-B1QFN (15x9)
Size / Dimension 0.59' L x 0.35' W x 0.11' H (15.0mm x 9.0mm x 2.8mm)
Series -
Package / Case 47-BQFN Module
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C
Number of Outputs 1
Mounting Type Surface Mount
Features UVLO
Efficiency -
Current - Output (Max) 6A
Control Features Enable, Active High
Base Product Number TPS84621
Applications ITE (Commercial)

Parts Introduction

Manufacturer Part Number

TPS84621RUQT

Manufacturer

Texas Instruments

Introduction

High-efficiency, non-isolated point-of-load (PoL) DC/DC converter module

Suitable for a variety of industrial and commercial applications

Product Features and Performance

Input voltage range: 4.5V to 14.5V

Output voltage range: 0.6V to 5.5V

Maximum output current: 6A

High efficiency up to 95%

Integrated UVLO (undervoltage lockout) protection

Compact 47-BQFN module package (15mm x 9mm x 2.8mm)

Product Advantages

High power density

Flexible output voltage adjustment

Robust protection features

Ease of use with simple external components

Key Technical Parameters

Input voltage range: 4.5V to 14.5V

Output voltage range: 0.6V to 5.5V

Maximum output current: 6A

Efficiency: Up to 95%

Operating temperature range: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Undervoltage lockout (UVLO) protection

Compatibility

Suitable for a variety of industrial and commercial applications

Application Areas

Industrial equipment

Communications and networking equipment

Consumer electronics

Embedded systems

Product Lifecycle

Currently available, no discontinuation plans known

Several Key Reasons to Choose This Product

High efficiency and power density

Wide input and output voltage range

Robust protection features

Compact and easy-to-use module design

Suitable for a wide range of industrial and commercial applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS84621RUQT

Product Attribute TPS84621RUQT TPS84610RKGT TPS84621RUQR TPS84620RUQT
Part Number TPS84621RUQT TPS84610RKGT TPS84621RUQR TPS84620RUQT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Size / Dimension 0.59' L x 0.35' W x 0.11' H (15.0mm x 9.0mm x 2.8mm) 0.43' L x 0.35' W x 0.11' H (11.0mm x 9.0mm x 2.8mm) 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) 0.59' L x 0.35' W x 0.11' H (15.0mm x 9.0mm x 2.8mm)
Voltage - Output 3 - - - -
Voltage - Output 1 0.6 ~ 5.5V 0.8 ~ 3.6V 0.6 ~ 5.5V 1.2 ~ 5.5V
Voltage - Input (Min) 4.5V 2.95V 4.5V 4.5V
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Type Non-Isolated PoL Module Non-Isolated PoL Module Non-Isolated PoL Module Non-Isolated PoL Module
Base Product Number TPS84621 TPS84610 TPS84621 TPS84620
Number of Outputs 1 1 1 1
Supplier Device Package 47-B1QFN (15x9) 39-B1QFN (11x9) 47-B1QFN (15x9) 47-B1QFN (15x9)
Control Features Enable, Active High Enable, Active High Enable, Active High Enable, Active High
Series - - - -
Current - Output (Max) 6A 6A 6A 6A
Features UVLO UVLO UVLO -
Efficiency - 96% - 90%
Voltage - Output 2 - - - -
Applications ITE (Commercial) ITE (Commercial) ITE (Commercial) ITE (Commercial)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Input (Max) 14.5V 6V 14.5V 14.5V
Package / Case 47-BQFN Module 39-BQFN Exposed Pad 47-BQFN Module 47-BQFN Module

TPS84621RUQT Datasheet PDF

Download TPS84621RUQT pdf datasheets and Texas Instruments documentation for TPS84621RUQT - Texas Instruments.

PCN Design/Specification
Mult Devices 14/Jun/2017.pdf LMZYYY/TPSYYY 30/Apr/2018.pdf
PCN Assembly/Origin
2.73KHz.pdf
HTML Datasheet
TPS84621.pdf
