HomeProductsIntegrated Circuits (ICs)PMIC - Power Management - SpecializedTPS65920BZCHR

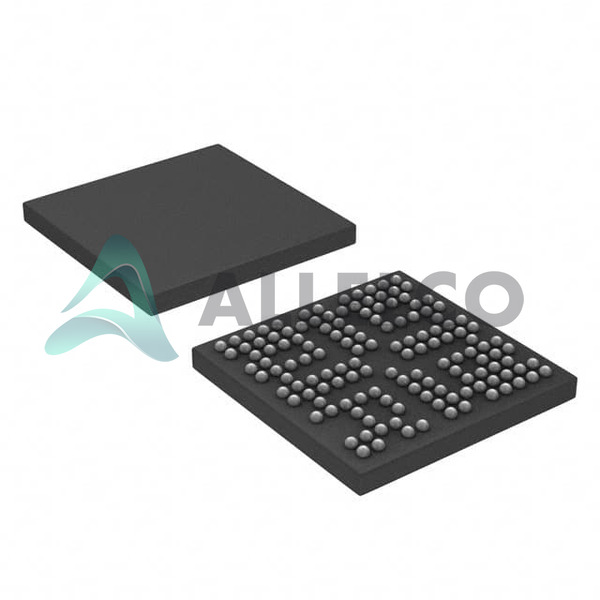

TPS65920BZCHR Image
TPS65920BZCHR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS65920BZCHR - Texas Instruments

Manufacturer Part Number
TPS65920BZCHR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS65920BZCHR
ECAD Model
Parts Description
IC PWR MGMT 4 LDO TXRX 139BGA
Detailed Description
Package
139-LFBGA
Data sheet
TPS65920,30 Manual.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 14600

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS65920BZCHR Tech Specifications
Texas Instruments - TPS65920BZCHR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS65920BZCHR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 2.7V ~ 4.5V
Supplier Device Package 139-NFBGA (10x10)
Series -
Package / Case 139-LFBGA
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Current - Supply 300µA
Base Product Number TPS65920
Applications Mobile/OMAP™

Parts Introduction

Manufacturer Part Number

TPS65920BZCHR

Manufacturer

Texas Instruments

Introduction

The TPS65920BZCHR is a Power Management Integrated Circuit (PMIC) designed for mobile and OMAP™ applications.

Product Features and Performance

Integrated power management for mobile devices

Supports multiple voltage rails for system peripherals

High efficiency and low quiescent current consumption

Advanced power sequencing

Product Advantages

Optimized for OMAP™ processors

Compact 139-LFBGA package saves space on PCB

Offers a variety of power control functions in a single chip

Key Technical Parameters

Current Supply: 300µA

Voltage Supply: 2.7V to 4.5V

Operating Temperature: -40°C to 85°C

Surface Mount technology for PCB mounting

Quality and Safety Features

Built-in safety features to prevent overvoltage and undervoltage conditions

Thermal shutdown and over-current protection to ensure device longevity

Compatibility

Specifically designed for mobile applications that utilize OMAP™ processors

Application Areas

Mobile phones

Portable electronics with OMAP™ processors

Product Lifecycle

Obsolete status; consult manufacturer for replacement or upgrade options

Several Key Reasons to Choose This Product

Tailored specifically for use with OMAP™ processors, ensuring seamless integration

Low-power consumption enhances battery life in mobile devices

Robust power management features reduce the need for additional components

Strong support and documentation from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS65920BZCHR

Product Attribute TPS65920BZCHR TPS65930A2ZCHR TPS65921BZQZ TPS65921B1ZQZR
Part Number TPS65920BZCHR TPS65930A2ZCHR TPS65921BZQZ TPS65921B1ZQZR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case 139-LFBGA 139-LFBGA 120-VFBGA 120-VFBGA
Series - - - -
Voltage - Supply 2.7V ~ 4.5V 2.7V ~ 4.5V 2.7V ~ 4.5V 2.7V ~ 4.5V
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Base Product Number TPS65920 TPS65930 TPS65921 TPS65921
Supplier Device Package 139-NFBGA (10x10) 139-NFBGA (10x10) 120-BGA Microstar Junior (6x6) 120-BGA Microstar Junior (6x6)
Applications Mobile/OMAP™ Mobile/OMAP™ Handheld/Mobile Devices, OMAP™ Handheld/Mobile Devices, OMAP™
Current - Supply 300µA 300µA 300µA 300µA

TPS65920BZCHR Datasheet PDF

Download TPS65920BZCHR pdf datasheets and Texas Instruments documentation for TPS65920BZCHR - Texas Instruments.
