HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS563202DRLR

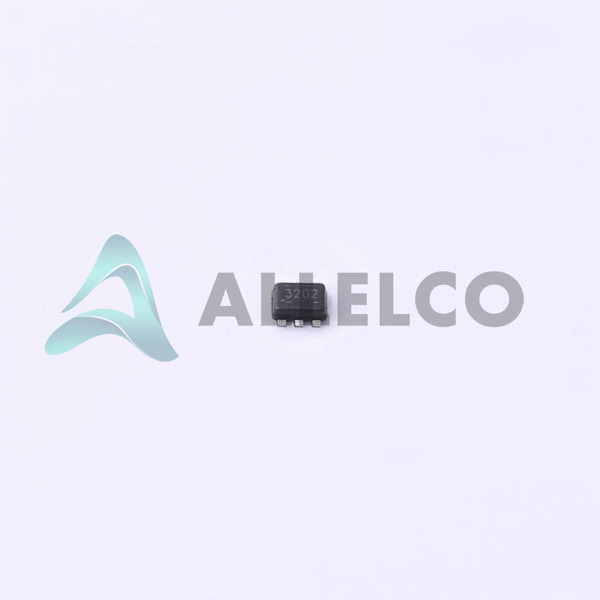

TPS563202DRLR Image
TPS563202DRLR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS563202DRLR - Texas Instruments

Manufacturer Part Number
TPS563202DRLR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS563202DRLR
ECAD Model
Parts Description
4.5-V TO 17-V INPUT, 3-A SYNCHRO
Detailed Description
Package
SOT-563, SOT-666
Data sheet
TPS563202.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 336190

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS563202DRLR Tech Specifications
Texas Instruments - TPS563202DRLR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS563202DRLR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.806V
Voltage - Output (Max) 7V
Voltage - Input (Min) 4.3V
Voltage - Input (Max) 17V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package SOT-563
Series -
Package / Case SOT-563, SOT-666
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 580kHz
Current - Output 3A
Base Product Number TPS563202

Parts Introduction

Manufacturer Part Number

TPS563202DRLR

Manufacturer

Texas Instruments

Introduction

Integrated DC-DC step-down converter

Provides adjustable output voltage

Product Features and Performance

High efficiency up to 95%

2A output current capability

Wide input voltage range of 4.3V to 17V

Adjustable output voltage from 0.806V to 7V

580kHz switching frequency

Synchronous rectification for high efficiency

Thermal shutdown and overcurrent protection

Low quiescent current of 20μA in standby mode

Product Advantages

Compact size in SOT-563 package

Excellent thermal performance

High efficiency across load range

Wide input voltage support

Adjustable output voltage

Key Technical Parameters

Output Voltage Range: 0.806V to 7V

Output Current: 0 to 3A

Input Voltage Range: 4.3V to 17V

Switching Frequency: 580kHz

Efficiency: Up to 95%

Quiescent Current: 20μA (standby)

Quality and Safety Features

Thermal shutdown protection

Overcurrent protection

ROHS3 compliant

Compatibility

Suitable for various portable electronics, industrial, and automotive applications

Application Areas

Portable electronics

Industrial equipment

Automotive electronics

Product Lifecycle

Currently in active production

No known plans for discontinuation

Replacement/upgrade options available from Texas Instruments

Key Reasons to Choose This Product

High efficiency and power density

Wide input voltage range

Adjustable output voltage

Robust protection features

Compact and thermally efficient design

Proven reliability from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS563202DRLR

Product Attribute TPS563202DRLR TPS563201DDCT TPS563209DDCR TPS563207SDRLR
Part Number TPS563202DRLR TPS563201DDCT TPS563209DDCR TPS563207SDRLR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Function Step-Down Step-Down Step-Down Step-Down
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Synchronous Rectifier Yes Yes Yes Yes
Voltage - Output (Min/Fixed) 0.806V 0.768V 0.76V 0.806V
Number of Outputs 1 1 1 1
Topology Buck Buck Buck Buck
Frequency - Switching 580kHz 580kHz 650kHz 580kHz
Voltage - Output (Max) 7V 7V 7V 7V
Output Configuration Positive Positive Positive Positive
Supplier Device Package SOT-563 SOT-23-THIN SOT-23-THIN SOT-563
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 85°C (TA) -40°C ~ 125°C (TJ)
Output Type Adjustable Adjustable Adjustable Adjustable
Series - D-CAP2™, Eco-Mode™ D-CAP2™ D-CAP2™
Package / Case SOT-563, SOT-666 SOT-23-6 Thin, TSOT-23-6 SOT-23-6 Thin, TSOT-23-6 SOT-563, SOT-666
Voltage - Input (Min) 4.3V 4.5V 4.5V 4.3V
Voltage - Input (Max) 17V 17V 17V 17V
Current - Output 3A 3A 3A 3A
Base Product Number TPS563202 TPS563201 TPS563209 TPS563207

TPS563202DRLR Datasheet PDF

Download TPS563202DRLR pdf datasheets and Texas Instruments documentation for TPS563202DRLR - Texas Instruments.

PCN Packaging
Additional Binary Codes 03/Oct/2022.pdf
PCN Assembly/Origin
TPS563202x 19/Apr/2022.pdf
HTML Datasheet
TPS563202.pdf
