Manufacturer Part Number

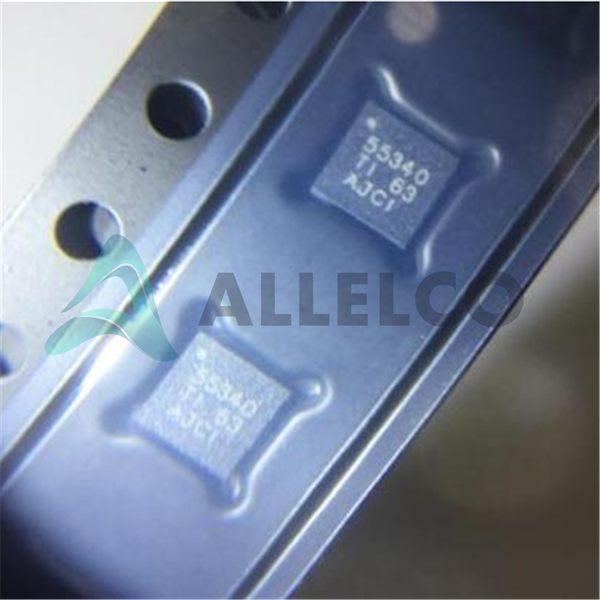

TPS55340RTER
Manufacturer
Texas Instruments
Introduction
The TPS55340RTER is a highly efficient, boost converter designed for power management, specifically in applications requiring step-up voltage regulation.
Product Features and Performance
Boost topology for step-up voltage regulation
Adjustable output voltage
Capable of isolation in output configuration
Supports a broad input voltage range from 2.9V to 32V
Maximum output voltage up to 38V
Can deliver output current up to 5.25A
Switching frequency adjustable between 94kHz and 1.14MHz
Operates over a wide temperature range from -40°C to 125°C
Surface mount package for compact PCB layout
Product Advantages
High efficiency in converting voltage levels
Flexibility with adjustable output characteristics
Suitable for applications requiring electrical isolation
Robust design capable of functioning in extreme temperatures
Key Technical Parameters
Input Voltage: 2.9V to 32V
Output Voltage: 2.9V to 38V
Output Current: 5.25A (Switch)
Switching Frequency: 94kHz ~ 1.14MHz
Quality and Safety Features
Over temperature protection ensuring safety and stability
Surface mount technology for reliable and secure PCB mounting
Compatibility
Compatible with a wide range of applications requiring voltage step-up and isolation capabilities
Application Areas
Power management systems
Renewable energy systems
Portable electronic devices
Automotive electronics
Product Lifecycle
Currently active with ongoing manufacturing
No imminent discontinuation, ensuring long-term availability
Replacement and upgrade options are available
Several Key Reasons to Choose This Product
Wide input and output voltage range catering to diverse power requirements
High current output capability for demanding applications
Adjustable switching frequency for flexible design options
Thermal and mounting reliability suited for harsh environments
Commitment to product longevity and support from Texas Instruments
