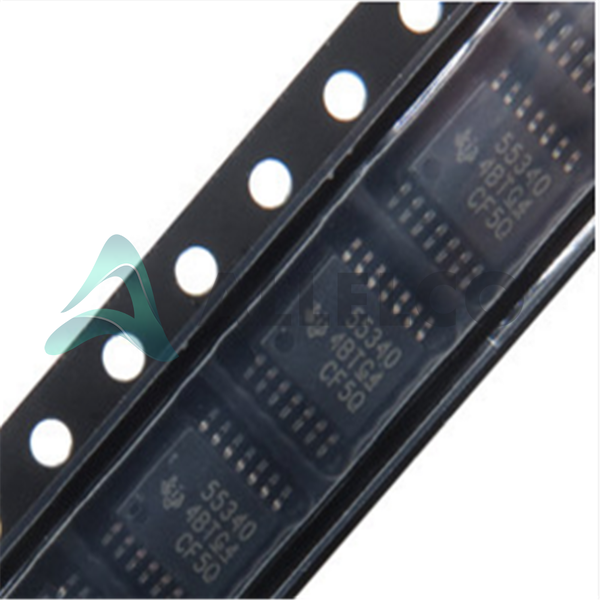

TPS55340PWP - Texas Instruments

Manufacturer Part Number

TPS55340PWP

Manufacturer

Texas Instruments

Introduction

The TPS55340PWP is a step-up DC DC switching regulator for power management applications.

Product Features and Performance

Step-Up (Boost) Converter

Adjustable Output Voltage

Single Output Design

Positive Output Configuration with Isolation Capability

Operational Switching Frequency Range from 94kHz to 1.14MHz

Thermal Shutdown Protection

Under Voltage Lock Out (UVLO)

Product Advantages

Flexible Input Voltage Range (2.9V to 32V)

High Output Voltage up to 38V

High Switch Current Capability up to 5.25A

Adjustable Switching Frequency for Design Flexibility

Capable of Operating in High-Temperature Environments

Key Technical Parameters

Voltage - Input (Min): 2.9V

Voltage - Input (Max): 32V

Voltage - Output (Min/Fixed): 2.9V

Voltage - Output (Max): 38V

Current - Output: 5.25A (Switch)

Frequency - Switching: 94kHz ~ 1.14MHz

Temperature Range: -40°C ~ 125°C (TA)

Quality and Safety Features

Built-in Over Temperature Protection

Over Current Protection

Under Voltage Lockout for Safe Operation

Compatibility

Compatible with Multiple Ceramic Capacitor Types

Suitable for Surface Mount Technology (SMT)

Application Areas

Power Supply Design for Consumer Electronics

Industrial and Automotive Systems

Telecommunication Infrastructure

Portable Devices with Higher Power Requirements

Product Lifecycle

Active Product Status

Not Reported as Nearing Discontinuation

Several Key Reasons to Choose This Product

High Efficiency for Power Saving

Wide Input Voltage Range Suitable for Various Applications

Supports High Output Voltage Applications

Integrated Safety Features for Reliability

Flexibility in Design due to Adjustable Parameters

Suitable for Harsh Temperature Environments

Texas Instruments' Renowned Quality and Support
