HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS54339DDAR

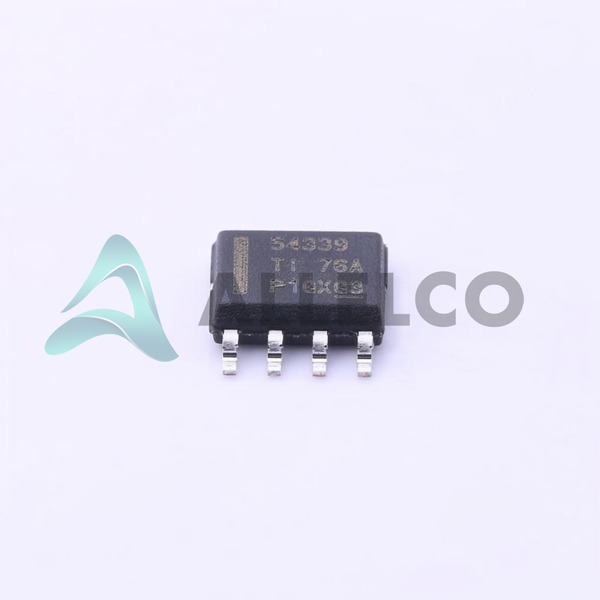

TPS54339DDAR Image
TPS54339DDAR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS54339DDAR - Texas Instruments

Manufacturer Part Number
TPS54339DDAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS54339DDAR
ECAD Model
Parts Description
IC REG BUCK ADJUSTABLE 3A 8SOPWR
Package
8-PowerSOIC (0.154", 3.90mm Width)
Data sheet
TPS54339DDAR.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 45150

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS54339DDAR Tech Specifications
Texas Instruments - TPS54339DDAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54339DDAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.76V
Voltage - Output (Max) 7V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 23V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 8-SO PowerPad
Series SWIFT™, D-CAP2™
Package / Case 8-PowerSOIC (0.154", 3.90mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 600kHz
Current - Output 3A
Base Product Number TPS54339

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS54339DDAR

Manufacturer

Texas Instruments

Introduction

The TPS54339DDAR is a high-performance, synchronous step-down DC-DC converter from Texas Instruments. It is designed for a wide range of applications that require efficient power conversion.

Product Features and Performance

Adjustable output voltage from 0.76V to 7V

Supports output current up to 3A

Switching frequency of 600kHz

Synchronous rectification for high efficiency

D-CAP2 control mode for fast transient response

Integrated power MOSFETs

Thermal shutdown and overcurrent protection

Product Advantages

High efficiency power conversion

Small solution size with integrated power stage

Flexible output voltage adjustment

Robust protection features

Key Technical Parameters

Input voltage range: 4.5V to 23V

Output voltage range: 0.76V to 7V

Output current: up to 3A

Switching frequency: 600kHz

Operating temperature range: -40°C to 85°C

Quality and Safety Features

RoHS3 compliant

Thermally enhanced 8-pin PowerPAD package

Compatibility

The TPS54339DDAR is compatible with a wide range of electronic systems and applications that require a reliable and efficient power supply.

Application Areas

Portable electronics

Industrial equipment

Telecommunications systems

Automotive electronics

Product Lifecycle

The TPS54339DDAR is an active product and is not nearing discontinuation. Texas Instruments provides long-term support and availability for this product.

Key Reasons to Choose This Product

High efficiency power conversion for improved system performance and reduced power consumption

Flexible output voltage adjustment to meet the specific requirements of your application

Robust protection features to ensure reliable and safe operation

Compact solution size for space-constrained designs

Long-term availability and support from a trusted semiconductor manufacturer, Texas Instruments.

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54339DDAR

Product Attribute TPS54339DDAR TPS54340DDA TPS54336ADDA TPS54339DDA
Part Number TPS54339DDAR TPS54340DDA TPS54336ADDA TPS54339DDA
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Base Product Number TPS54339 TPS54340 TPS54336 TPS54339
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Input (Max) 23V 42V 28V 23V
Function Step-Down Step-Down Step-Down Step-Down
Number of Outputs 1 1 1 1
Topology Buck Buck Buck Buck
Series SWIFT™, D-CAP2™ Eco-Mode™ - SWIFT™, D-CAP2™
Current - Output 3A 3.5A 3A 3A
Voltage - Output (Max) 7V 41.1V 24V 7V
Output Configuration Positive Positive Positive Positive
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 150°C (TJ) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Package / Case 8-PowerSOIC (0.154", 3.90mm Width) 8-PowerSOIC (0.154", 3.90mm Width) 8-PowerSOIC (0.154", 3.90mm Width) 8-PowerSOIC (0.154', 3.90mm Width)
Synchronous Rectifier Yes No Yes Yes
Voltage - Output (Min/Fixed) 0.76V 0.8V 0.8V 0.76V
Voltage - Input (Min) 4.5V 4.5V 4.5V 4.5V
Supplier Device Package 8-SO PowerPad 8-SO PowerPad 8-SO PowerPad 8-SO PowerPad
Package Tape & Reel (TR) Tube Tube Tube
Frequency - Switching 600kHz 100kHz ~ 2.5MHz 340kHz 600kHz
Output Type Adjustable Adjustable Adjustable Adjustable
