Manufacturer Part Number

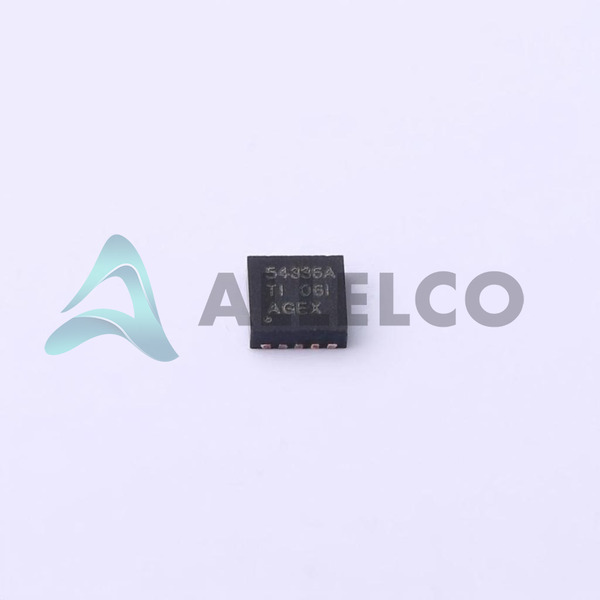

TPS54336ADRCR
Manufacturer
Texas Instruments
Introduction
The TPS54336ADRCR is a step-down DC-DC voltage regulator designed for power management applications.
Product Features and Performance
Step-down (Buck) topology
Adjustable output voltage
Single output channel
Input voltage range from 4.5V to 28V
Output voltage range from 0.8V to 24V
3A output current capacity
340kHz switching frequency
Synchronous rectification for improved efficiency
Operating temperature range from -40°C to 85°C
Surface mount 10-VFDFN exposed pad package
Product Advantages
High efficiency due to synchronous rectification
Wide range of input and output voltages compatible with various applications
Compact VFDFN package for space-constrained designs
Robust thermal performance and reliability
Key Technical Parameters
Output Type: Adjustable
Number of Outputs: 1
Frequency Switching: 340kHz
Current Output: 3A
Voltage Input (Min): 4.5V
Voltage Input (Max): 28V
Voltage Output (Min/Fixed): 0.8V
Voltage Output (Max): 24V
Quality and Safety Features
Built-in thermal protection
Overcurrent protection
Stable operation across the specified temperature range
Compatibility
10-VFDFN Exposed Pad compatible with surface mount technology
Application Areas
Consumer Electronics
Telecommunications
Industrial Systems
Computing Devices
Product Lifecycle
Product Status: Active
Not nearing discontinuation, replacements or upgrades should be available if needed
Several Key Reasons to Choose This Product
Texas Instruments' reputation for high-quality and reliable power management solutions
Versatile voltage range ideal for multiple applications
High-efficiency synchronous buck regulator reduces power loss
Enhanced thermal performance suitable for high-temperature environments
Small form factor ideal for compact electronic devices
