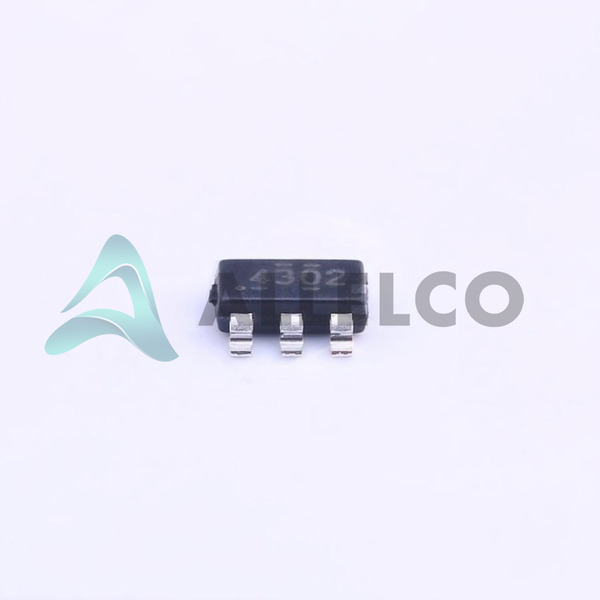

TPS54302DDCT - Texas Instruments

Manufacturer Part Number

TPS54302DDCT

Manufacturer

Texas Instruments

Introduction

The TPS54302DDCT is a buck (step-down) converter from Texas Instruments, designed for efficient power management and voltage regulation.

Product Features and Performance

Adjustable output voltage from 0.596V to 28V

Maximum current output of 3A

Input voltage range from 4.5V to 28V

Switching frequency of 400kHz

Supports synchronous rectification for improved efficiency

Operating temperature ranges from -40°C to 125°C

Product Advantages

High flexibility with adjustable output voltage

Wide input voltage range suitable for various applications

High efficiency due to synchronous rectification feature

Key Technical Parameters

Output Type: Adjustable

Number of Outputs: 1

Voltage Input (Min): 4.5V

Voltage Input (Max): 28V

Voltage Output (Min/Fixed): 0.596V

Voltage Output (Max): 28V

Current Output: 3A

Frequency Switching: 400kHz

Quality and Safety Features

Operates reliably in a wide temperature range from -40°C to 125°C

Compatibility

The device's surface mount package (SOT-23-6 Thin, TSOT-23-6) ensures compatibility with compact PCB layouts

Application Areas

Ideal for power regulation in consumer electronics, industrial systems, and telecommunication equipment

Product Lifecycle

Currently active with ongoing support and availability from Texas Instruments

Check manufacturer's resources for updates on replacement or upgrade options

Several Key Reasons to Choose This Product

Offers an adjustable voltage setting for flexible application use

Wide input voltage range makes it versatile for multiple electronic configurations

High efficiency with synchronous rectification, conserves energy and extends product life

Robust temperature range ensuring performance in diverse operating environments

Compact and reliable package suitable for space-constrained applications
