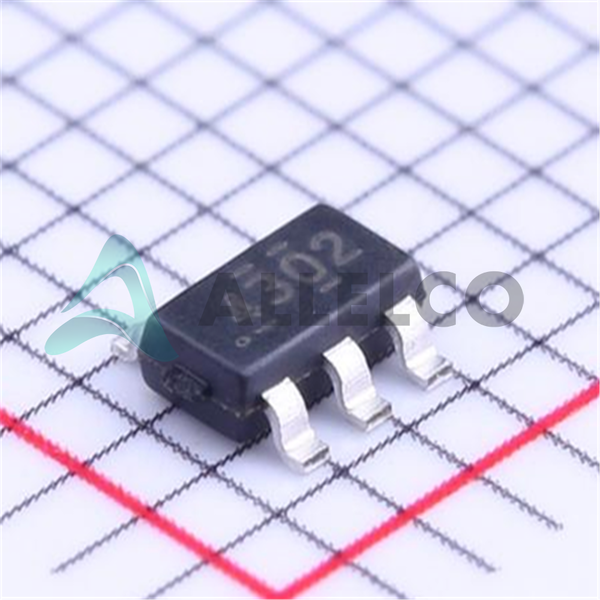

TPS54302DDCR - Texas Instruments

Manufacturer Part Number

TPS54302DDCR

Manufacturer

Texas Instruments

Introduction

High-performance, wide-input voltage range, synchronous step-down DC-DC converter

Product Features and Performance

Wide input voltage range: 4.5V to 28V

Adjustable output voltage from 0.596V to 28V

Up to 3A continuous output current

400kHz switching frequency

High efficiency up to 95%

Integrated high-side and low-side MOSFETs

Robust overcurrent, overvoltage and thermal protection

Soft start and shutdown functions

Product Advantages

Compact size with integrated power switches

Wide input voltage range for versatile applications

High efficiency for power-sensitive designs

Reliable protection features for safe operation

Key Technical Parameters

Input Voltage: 4.5V to 28V

Output Voltage: 0.596V to 28V

Output Current: 3A max

Switching Frequency: 400kHz

Efficiency: Up to 95%

Package: SOT-23-6 Thin, TSOT-23-6

Quality and Safety Features

RoHS3 compliant

Overcurrent, overvoltage and thermal protection

Soft start and shutdown functions

Compatibility

Compatible with a variety of microcontrollers, processors and other electronic devices

Application Areas

Portable electronics

Industrial control

Telecommunications equipment

Automotive electronics

Product Lifecycle

This product is currently in production and available for purchase.

Replacement or upgrade options may be available in the future as technology advances.

Key Reasons to Choose This Product

Wide input voltage range for versatile applications

High efficiency for power-sensitive designs

Compact size with integrated power switches

Reliable protection features for safe operation

Suitable for a variety of electronic devices and applications
