Manufacturer Part Number

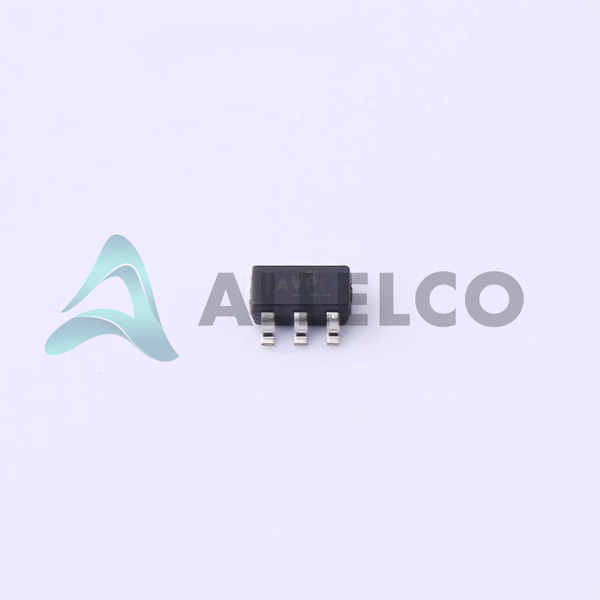

TPS3808G30DBVT
Manufacturer
Texas Instruments
Introduction
The TPS3808G30DBVT is a voltage supervisor device designed to provide precise voltage monitoring with programmable delay.
Product Features and Performance
Simple Reset/Power-On Reset functionality
Single voltage monitoring capability
Programmable reset threshold voltage of 2.79V
Output can be configured as Open Drain or Open Collector
Active Low reset signal
Adjustable Reset Timeout feature
Supports a wide operating temperature range from -40°C to 125°C
Surface Mount device suitable for high-density PCB designs
Product Advantages
High accuracy for voltage monitoring protects systems from undervoltage conditions
Flexible configuration suitable for various application needs
Robust temperature performance guarantees operation in extreme conditions
Compact package enables use in space-constrained applications
Key Technical Parameters
Voltage - Threshold: 2.79V
Number of Voltages Monitored: 1
Output: Open Drain or Open Collector
Reset: Active Low
Reset Timeout: Adjustable/Selectable
Operating Temperature: -40°C to 125°C
Package / Case: SOT-23-6
Quality and Safety Features
Built-in hysteresis improves noise margin and system reliability
Overtemperature protection ensuring device operation within safe temperature ranges
Compatibility
Compatible with various microcontrollers and digital systems requiring voltage supervision
Application Areas
Industrial controls
Automotive systems
Consumer electronics
Computing devices
Telecommunication equipment
Product Lifecycle
Product Status: Active
The TPS3808G30DBVT is not reported to be nearing discontinuation, and replacement or upgrade paths are available if needed.
Several Key Reasons to Choose This Product
Highly accurate voltage monitoring improves system reliability
User-programmable timeout period accommodates specific system requirements
Wide operating temperature range makes it suitable for harsh environments
Compact form factor SOT-23-6 aids in designing miniature electronic circuits
Renowned manufacturer Texas Instruments ensures product quality and longevity
Direct compatibility with various systems simplifies integration
Comprehensive technical support and documentation from Texas Instruments
