Manufacturer Part Number

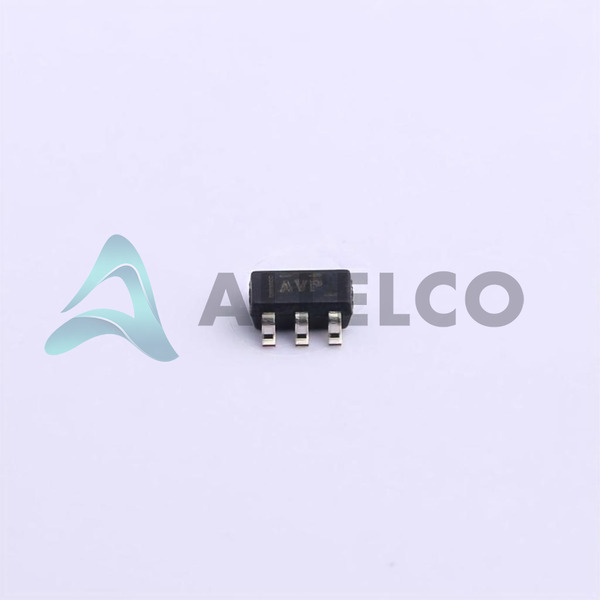

TPS3808G30DBVR
Manufacturer
Texas Instruments
Introduction
The TPS3808G30DBVR is a precision voltage supervisor designed for power management, specifically in supervising system voltages and providing a simple reset/power-on reset functionality.
Product Features and Performance
Monitors a single system voltage
Reset threshold voltage of 2.79V ensures accurate monitoring
Flexible reset output options: Open Drain or Open Collector
Adjustable reset timeout for system requirements customization
Wide operating temperature range from -40°C to 125°C suitable for various environments
Surface mount SOT-23-6 package for compact circuit designs
Product Advantages
High precision voltage monitoring enhances system reliability
Flexible design suitable for a wide range of applications
Compact package allows for easier integration into space-constrained designs
Key Technical Parameters
Number of Voltages Monitored: 1
Voltage Threshold: 2.79V
Output: Open Drain or Open Collector
Reset: Active Low
Reset Timeout: Adjustable/Selectable
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: SOT-23-6
Quality and Safety Features
Built to meet stringent industry standards for reliability and performance
Over-temperature protection
Compatibility
Compatible with a wide range of microcontrollers and digital systems requiring voltage supervision
Application Areas
Consumer Electronics
Automotive systems
Industrial controls
Power management applications
Product Lifecycle
Status: Active
This product is not nearing discontinuation and replacements or upgrades are available.
Several Key Reasons to Choose This Product
High precision voltage threshold for improved system stability
Wide operating temperature range makes it suitable for various environments
Adjustable reset timeout feature enables customization for different system requirements
Compact and versatile for easy integration into a variety of designs
Supported by Texas Instruments’ reliability and performance assurance
