Manufacturer Part Number

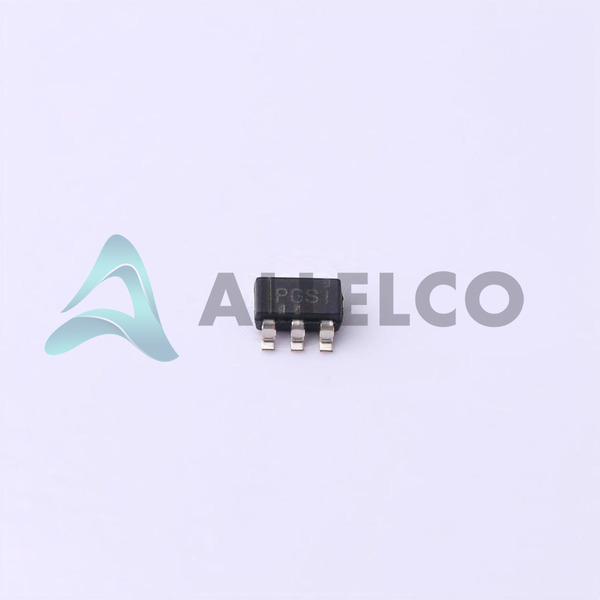

TPS3106E16DBVR
Manufacturer
Texas Instruments
Introduction
Power Management IC supervising single voltage level with active low reset signal
Product Features and Performance
Simple Reset/Power-On Reset function
Monitors one voltage level
65ms minimum reset timeout
Active Low reset output
Operating Temperature range from -40°C to 85°C
Surface Mount package
Product Advantages
High precision voltage monitoring for reliable operation
Optimized for low power consumption
Robust performance across a wide temperature range
Key Technical Parameters
Voltage - Threshold at 1.521V
Output config - Open Drain or Open Collector
Number of Voltages Monitored: 1
Reset Timeout: Fixed at 65ms Minimum
Package - SOT-23-6
Quality and Safety Features
Built to industry standards for quality and safety
Operational stability from -40°C to 85°C
Compatibility
Compatible with systems requiring a 1.521V threshold monitor
Surface Mount compatible with SOT-23-6 footprint
Application Areas
Consumer electronics
Computer systems
Power supply management
Telecommunications
Product Lifecycle
Active status
Not reported as nearing discontinuation
Replacements or upgrades should be checked with manufacturer
Several Key Reasons to Choose This Product
Precision voltage threshold for accurate monitoring
Low power consumption for energy-saving designs
Suitable for broad range of operating temperatures
Small form factor for compact PCB designs
Proven reliability backed by Texas Instruments' reputation
Easily integrated into existing and new designs due to standard packaging
