Manufacturer Part Number

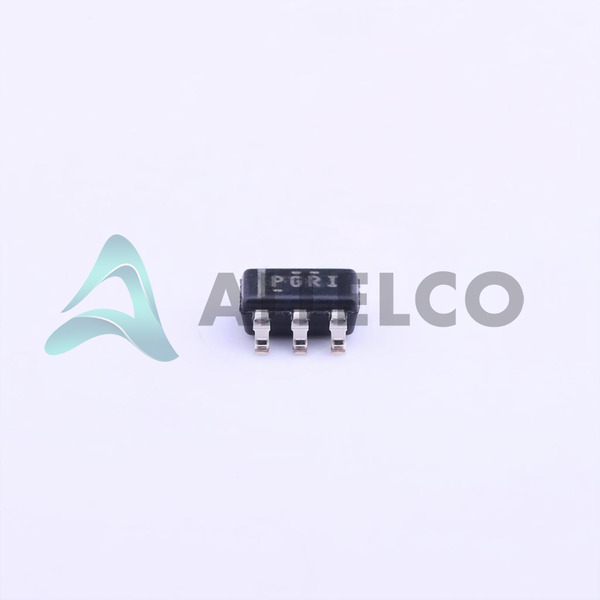

TPS3103K33DBVT
Manufacturer
Texas Instruments
Introduction
The TPS3103K33DBVT is a simple reset/power-on reset supervisory circuit, designed for monitoring a single voltage threshold. It ensures reliable system reset for microcontrollers.
Product Features and Performance
Simple reset/power-on reset functionality
Monitors single voltage threshold
Threshold voltage of 2.941V
Active low reset signal
Reset timeout minimum of 65ms
Operating temperature range from -40°C to 85°C
Surface mount, SOT-23-6 package
Product Advantages
Ensures reliable reset for system stability
Compact SOT-23-6 package suitable for space-constrained applications
Low threshold voltage suitable for low-voltage applications
Wide operating temperature range for use in diverse environments
Key Technical Parameters
Number of Voltages Monitored: 1
Voltage Threshold: 2.941V
Output: Open Drain or Open Collector
Reset: Active Low
Reset Timeout: 65ms Minimum
Operating Temperature: -40°C to 85°C
Mounting Type: Surface Mount
Package / Case: SOT-23-6
Quality and Safety Features
Manufactured by Texas Instruments, ensuring high reliability and performance
Designed for fault-tolerant systems needing robust reset circuits
Compatibility
Compatible with various microcontrollers for universal application
Application Areas
Microcontroller systems
Portable electronics
Power management systems
Embedded systems
IoT devices
Product Lifecycle
Status: Active
Not nearing discontinuation, with stability in supply and availability of replacements or upgrades
Several Key Reasons to Choose This Product
Texas Instruments reliability and innovation in power management
Compact design suitable for miniaturized electronics
Accurate voltage monitoring for system stability and protection
Versatile operating temperature range for a wide array of applications
Active product status ensures ongoing support and availability
