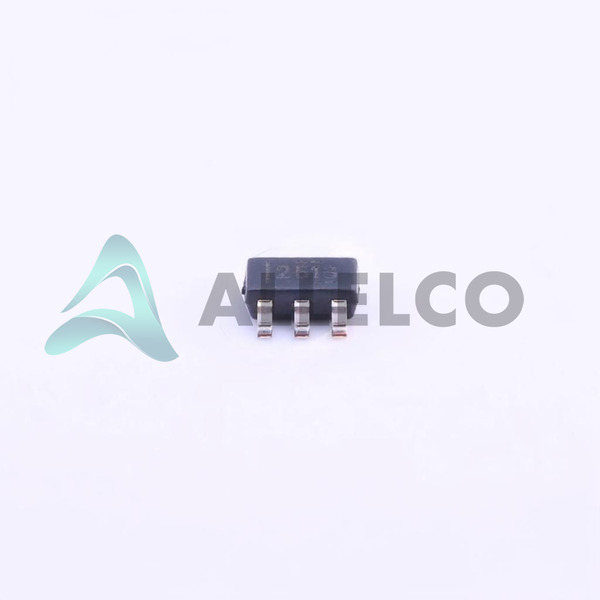

TPS2513DBVR - Texas Instruments

Manufacturer Part Number

TPS2513DBVR

Manufacturer

Texas Instruments

Introduction

The TPS2513DBVR is a specialized power management IC designed for USB Dedicated Charging Port (DCP) applications.

Product Features and Performance

Provides DCP auto-detection for charging compatibility

Supports USB Battery Charging Specification 1.2

155µA low quiescent current

Integrated power switch for USB port power control

Over-current and short-circuit protection

Thermal shutdown protection

5V to 5.5V operating voltage range for USB power standard

High-temperature operation up to 125°C

Product Advantages

Improves battery charging efficiency and speed

Supports a wide range of USB devices

Minimizes power dissipation

Compact SOT-23-6 package saves board space

Integrates multiple protection features for enhanced safety

Key Technical Parameters

Supply Current: 155µA

Supply Voltage: 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package: SOT-23-6

Quality and Safety Features

Built-in thermal shutdown

Over-current protection

Short-circuit protection

Compatibility

Compatible with smartphones, tablets, and other USB-powered devices

Application Areas

Consumer Electronics

Portable Charging Solutions

USB Hubs and Accessories

Telecommunications Equipment

Product Lifecycle

Status: Active

Not nearing discontinuation

Availability of replacements or upgrades not specified

Several Key Reasons to Choose This Product

Efficient power management for fast device charging

Universal compatibility with USB-powered devices

Low power consumption enhances battery life

Robust safety features for device protection

Small footprint suitable for compact electronic designs

Renowned manufacturer with a history of reliability and performance
