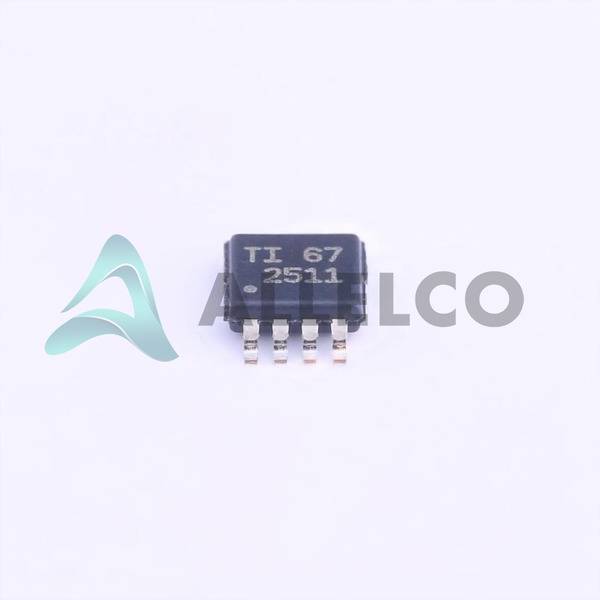

TPS2511DGNR - Texas Instruments

Manufacturer Part Number

TPS2511DGNR

Manufacturer

Texas Instruments

Introduction

Integrated circuit designed for USB Dedicated Charging Port (DCP) and Power Switch applications.

Product Features and Performance

Supports USB Dedicated Charging Port (DCP) specification

Automatic detection of USB standard data line configurations

Integrated power switch for up-stream port protection

Low-current consumption

Precision current limiting

Thermal shutdown protection

Supports a wide range of USB input voltages

Product Advantages

Maximizes charging speed compatibility across devices

Energy-efficient operation reduces power loss

Protects USB ports from overcurrent events

Minimizes space with small footprint TSSOP package

Key Technical Parameters

Current Supply: 180µA

Voltage Supply: 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Quality and Safety Features

Built-in thermal shutdown

Accurate and reliable current limiting

ESD protection for improved safety

Compatibility

Compatible with a variety of USB configurations and standards for charging

Application Areas

USB power supplies and chargers

Portable electronics charging solutions

Consumer electronic devices

Product Lifecycle

Status: Active

Not reported to be nearing discontinuation

Availability of replacements or upgrades not specified

Several Key Reasons to Choose This Product

Texas Instruments' reputable manufacturing and quality

Versatility in USB charging applications

Comprehensive protection features for device safety

Low power consumption for energy-conscious designs

Broad operating temperature range suits various environments
