Manufacturer Part Number

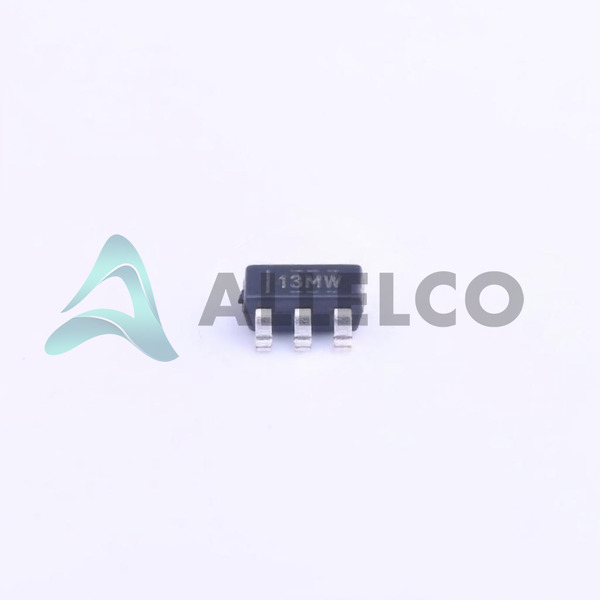

TPS22918DBVR
Manufacturer
Texas Instruments
Introduction
The TPS22918DBVR is a load switch designed for power management applications, particularly in distributing power and managing loads with high efficiency.
Product Features and Performance
General-purpose high side switch
Single output
N-Channel output type
On/Off interface switch
Supports voltage loads from 1V to 5.5V
Can deliver output current up to 2A
Slew rate controlled to minimize noise
53mOhm typical Rds On (Resistance)
Load Discharge feature to safely discharge output loads
Product Advantages
Effective power distribution and load management
Low on-resistance to maximize efficiency
Small package size (SOT-23-6) for space-constrained applications
Slew rate control mitigates EMI and noise susceptibility
Key Technical Parameters
Output Configuration: High Side
Voltage - Load: 1V ~ 5.5V
Current - Output (Max): 2A
Rds On (Typ): 53mOhm
Operating Temperature: -40°C ~ 105°C
Quality and Safety Features
Operational over a wide temperature range of -40°C to 105°C
Built-in load discharge function for safe operation
Compatibility
Compatible with various circuitry requiring load distribution due to its high-side configuration and wide operating voltage range
Application Areas
Power distribution for portable devices
Power management in battery-driven applications
Electronic gadgets requiring controlled power load switching
Product Lifecycle
Status: Active
No indication of discontinuation, ensuring long-term availability and support
Several Key Reasons to Choose This Product
Highly efficient power distribution with low Rds On of 53mOhm
Supports a wide range of operating voltages (1V to 5.5V) suitable for various applications
Compact SOT-23-6 package ideal for space-sensitive designs
Slew rate control feature to reduce noise and enhance device reliability
Operational across a broad temperature spectrum for versatile applications
