TPS22916CYFPT - Texas Instruments

Manufacturer Part Number

TPS22916CYFPT

Manufacturer

Texas Instruments

Introduction

The TPS22916CYFPT is a power distribution switch from Texas Instruments designed for power management tasks within electronic circuits.

Product Features and Performance

General Purpose Power Distribution Switch

Single Output

High Side P-Channel MOSFET

Slew Rate Controlled Switching

Reverse Current Protection

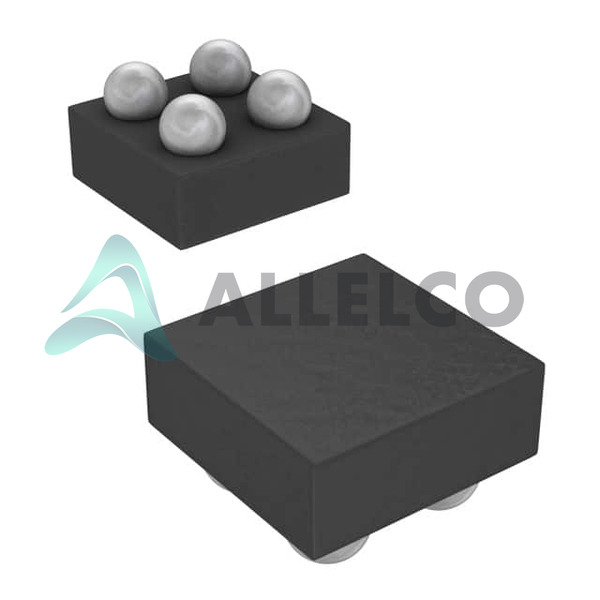

Surface Mount, 4-DSBGA Packaging

Product Advantages

Efficient Power Management

Compact 4-XFBGA, DSBGA Package

Low On-Resistance of 200mOhm

Supports a Wide Range of Supply Voltages from 1V to 5.5V

Key Technical Parameters

Number of Outputs: 1

Voltage - Load: 5.5V Max

Voltage - Supply (Vcc/Vdd): 1V to 5.5V

Current - Output (Max): 2A

Rds On (Typ): 200mOhm

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Integrated Fault Protection against Reverse Current

Reliable Operation in a wide temperature range

Compatibility

Compatible with Various Electronic Circuit Designs

Application Areas

Consumer Electronics

Portable Devices

Industrial Control Systems

Telecommunications

Product Lifecycle

Active Status, Not Nearing Discontinuation

Replacements or Upgrades Available

Several Key Reasons to Choose This Product

Highly Efficient Power Switching Capabilities

Low Resistance Minimizes Power Loss

Broad Voltage Support for Flexible Usage

Compact and Reliable Design for Space-Constrained Applications

Proven Quality from Texas Instruments
