HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversTPS2065DGNR

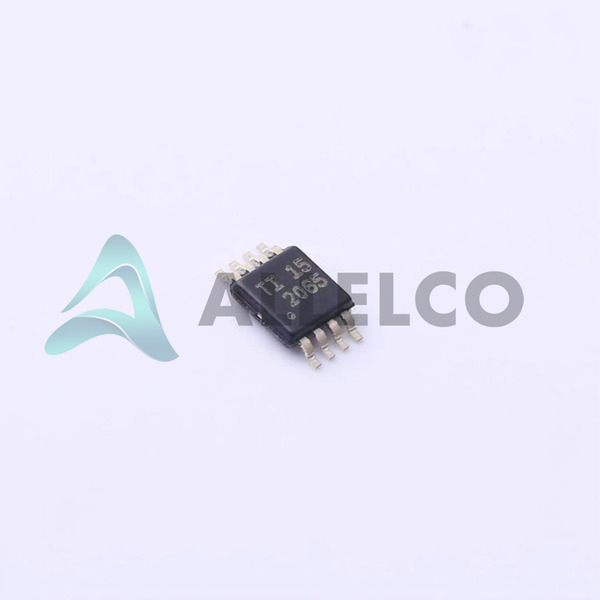

TPS2065DGNR Image
TPS2065DGNR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS2065DGNR - Texas Instruments

Manufacturer Part Number
TPS2065DGNR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS2065DGNR
ECAD Model
Parts Description
IC PWR SWITCH N-CHAN 1:1 8MSOP
Package
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Data sheet
TPS2061-63/65-67.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 53440

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS2065DGNR Tech Specifications
Texas Instruments - TPS2065DGNR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS2065DGNR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Vcc/Vdd) Not Required
Voltage - Load 2.7V ~ 5.5V
Switch Type General Purpose
Supplier Device Package 8-HVSSOP
Series -
Rds On (Typ) 70mOhm
Ratio - Input:Output 1:1
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Package Tape & Reel (TR)
Output Type N-Channel
Product Attribute Attribute Value
Output Configuration High Side
Operating Temperature -40°C ~ 125°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Interface On/Off
Input Type Non-Inverting
Features Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, UVLO
Current - Output (Max) 1A
Base Product Number TPS2065

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS2065DGNR

Manufacturer

Texas Instruments

Introduction

Integrated Power Management IC

Power Distribution Switch and Load Driver

Product Features and Performance

1A N-Channel Power Switch

Integrated Over-Current, Over-Temperature, and Under-Voltage Lockout Protection

Status Flag Indicator

Wide 2.7V to 5.5V Operating Voltage Range

Low On-Resistance (70mΩ Typical)

Fast Turn-On and Turn-Off Times

Product Advantages

Robust Protection Features

High Efficiency and Low Power Consumption

Compact 8-Pin HVSSOP Package

Wide Operating Temperature Range (-40°C to 125°C)

Key Technical Parameters

Output Current (Max): 1A

On-Resistance (Typical): 70mΩ

Operating Voltage Range: 2.7V to 5.5V

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

RoHS3 Compliant

Overcurrent, Overtemperature, and UVLO Protection

Compatibility

Wide Compatibility with Various Systems and Devices

Application Areas

Power Distribution and Load Switching

Battery-Powered Devices

Industrial and Consumer Electronics

Product Lifecycle

Current production model

Replacements and upgrades may be available in the future

Key Reasons to Choose This Product

Robust protection features for reliable operation

High efficiency and low power consumption

Compact and space-saving package

Wide operating temperature range for versatile applications

Proven reliability and performance from a trusted manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS2065DGNR

Product Attribute TPS2065DGNR TPS2065QDGNRQ1 TPS2065DR TPS2065DDBVR
Part Number TPS2065DGNR TPS2065QDGNRQ1 TPS2065DR TPS2065DDBVR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Series - Automotive, AEC-Q100 - -
Output Type N-Channel N-Channel N-Channel N-Channel
Ratio - Input:Output 1:1 1:1 1:1 1:1
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad 8-SOIC (0.154', 3.90mm Width) SC-74A, SOT-753
Number of Outputs 1 1 1 1
Rds On (Typ) 70mOhm 70mOhm 70mOhm 96mOhm
Voltage - Load 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 4.5V ~ 5.5V
Input Type Non-Inverting Non-Inverting Non-Inverting Non-Inverting
Switch Type General Purpose General Purpose General Purpose General Purpose
Voltage - Supply (Vcc/Vdd) Not Required Not Required Not Required Not Required
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TA) -40°C ~ 125°C (TJ) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Current - Output (Max) 1A 1A 1A 1A
Interface On/Off On/Off On/Off On/Off
Features Status Flag Status Flag Status Flag Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Fixed), Over Temperature, UVLO Current Limiting (Fixed), Over Temperature, UVLO
Base Product Number TPS2065 TPS2065 TPS2065 TPS2065
Output Configuration High Side High Side High Side High Side
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Supplier Device Package 8-HVSSOP 8-HVSSOP 8-SOIC SOT-23-5

TPS2065DGNR Datasheet PDF

Download TPS2065DGNR pdf datasheets and Texas Instruments documentation for TPS2065DGNR - Texas Instruments.
