Manufacturer Part Number

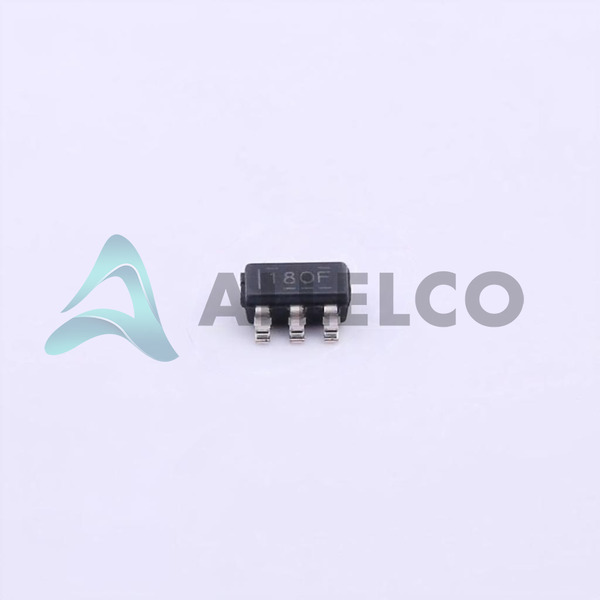

TPS2065DDBVR
Manufacturer
texas-instruments
Introduction
The TPS2065DDBVR is a part of Texas Instruments' power management portfolio, designed to manage power distribution in electronic devices.
Product Features and Performance
Single output for power distribution
High Side output configuration with N-Channel output type
Integrated features include Status Flag indicating operational status
Fault protection capabilities for Current Limiting, Over Temperature, and Under Voltage Lock Out (UVLO)
Supports On/Off interface for easy operational control
Product Advantages
Optimized for managing power with a 4.5V to 5.5V load voltage range
Requires no external voltage supply for its operation
Features a low Rds (On) typical value of 96mOhm, ensuring efficient power distribution with minimal losses
Compact SOT-23-5 package allows for efficient use of PCB space
Key Technical Parameters
Number of Outputs: 1
Voltage Load: 4.5V to 5.5V
Current Output (Max): 1A
Operating Temperature: -40°C to 85°C
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Quality and Safety Features
Incorporates fixed current limiting and over-temperature protection to safeguard the system under fault conditions
UVLO feature prevents system damage under low voltage conditions
Compatibility
Designed for general purpose power distribution applications, compatible across a wide range of electronic devices
Application Areas
Suitable for a variety of applications including consumer electronics, industrial controls, and portable devices
Product Lifecycle
Currently in Active Product Status, not nearing discontinuation with Texas Instruments providing ongoing support and possible upgrades
Several Key Reasons to Choose This Product
Wide operating voltage and temperature range making it suitable for diverse applications
Compact footprint and surface mount packaging simplifies PCB design and saves space
Built-in safety features enhance system reliability and longevity
Performance optimized for efficient power distribution with minimal power loss
Strong support and long product lifecycle from a reputable manufacturer like Texas Instruments ensures long-term availability and functionality
