Manufacturer Part Number

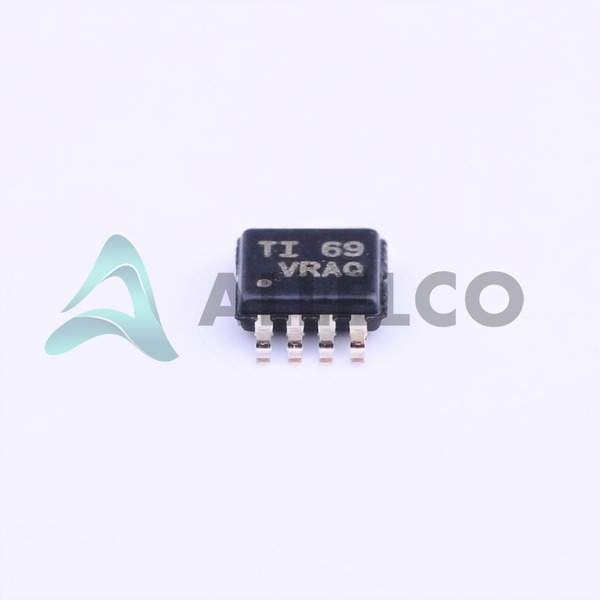

TPS2060CDGN
Manufacturer
Texas Instruments
Introduction
The TPS2060CDGN is a current-limited, power-distribution switch designed for applications requiring power or load distribution.
Product Features and Performance
Two high-side N-Channel MOSFET switches
Power distribution with current limiting
5A maximum output current
Typical Rds (On) of 70mOhms
Load discharge feature
Status flag for reporting error conditions
Product Advantages
Integrated multiple protections (over temperature, current limiting, reverse current, and undervoltage lockout)
Supports 4.5V to 5.5V operating voltage range
High reliability with -40°C to 125°C operating temperature range
Non-inverting input simplifies interfacing
Key Technical Parameters
Number of Outputs: 2
Input:Output Ratio: 1:2
Output Configuration: High Side
Interface: On/Off
Voltage Load: 4.5V ~ 5.5V
Voltage Supply (Vcc/Vdd): Not Required
Current Output (Max): 1.5A
Rds On (Typ): 70mOhm
Fault Protection: Various
Quality and Safety Features
Current Limiting (Fixed) for safer operation
Over Temperature protection to avoid overheating
Reverse current prevention to protect against reverse voltage damage
UVLO (Under Voltage Lockout) for stable performance
Compatibility
Versatile 8-HVSSOP and 8-TSSOP (0.118", 3.00mm Width) Exposed Pad for surface mount compatibility
Application Areas
USB hubs and ports
Hot-swap and plug-in boards
Portable electronics
Overcurrent and short-circuit protection circuits
Product Lifecycle
Product Status: Active
Not nearing discontinuation
Replacement or upgrade products typically available due to TI's broad portfolio
Several Key Reasons to Choose This Product
Texas Instruments' reputation for high-quality power management solutions
Fault protection features enhance system reliability
Load discharge and status flag features for better system management
Suitable for a range of commercial, industrial and rugged applications
Active lifecycle status ensures long-term availability and support
